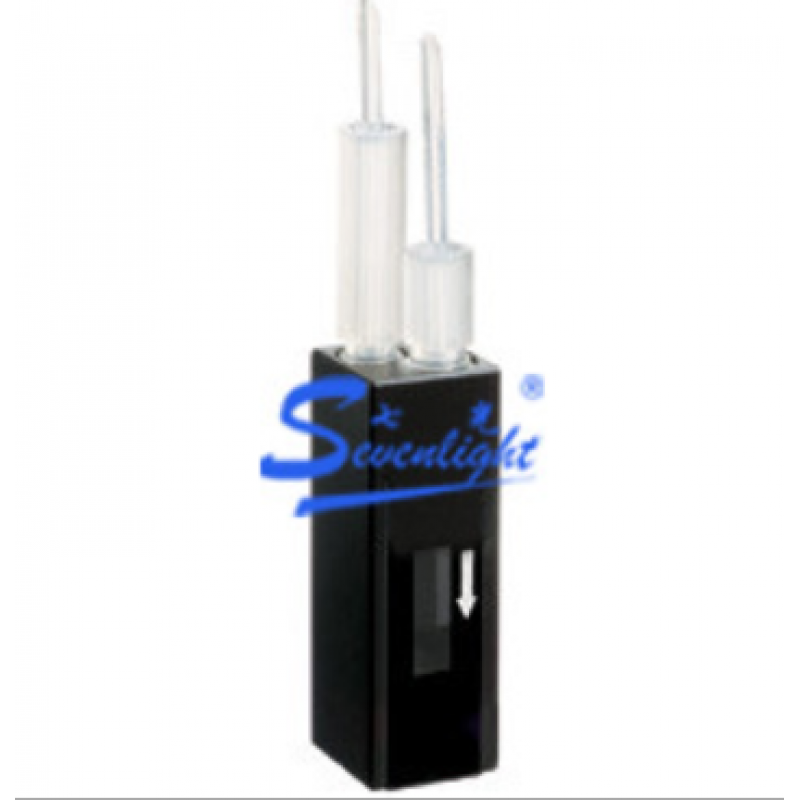

Semi-Fluid Quartz Cell(flow cell/flow cell/biochemical flow colorimetric) , (78ul , 15mm)
- Brand:Orioner (Sevenlight)
- Model:MO00390038-07
- Availability:In Stock
Description PDF
sevenlight...._38.pdf (126 KB)
Ask Question About Product
Specification :
|
Product number |
Product parameters |
Note |
||||||
|
Window material |
Optical path mm |
Outer diameter size H×W×Dmm |
Capacity μl |
Number of windows |
Center height mm |
Aperture H×Wmm |
||
|
MO00390038-01 |
quartz |
1 |
35 × 12.5 × 12.5 |
39 |
2 |
8.5 |
11 × 3.5 |
The inlet and outlet sample interface can use PEFT spiral interface or metal tube (different price). This table is a common specification, other parameters can be customized according to customer requirements |
|
MO00390038-02 |
quartz |
2 |
35 × 12.5 × 12.5 |
78 |
2 |
8.5 |
11 × 3.5 |
|
|
MO00390038-03 |
quartz |
5 |
35 × 12.5 × 12.5 |
195 |
2 |
8.5 |
11 × 3.5 |
|
|
MO00390038-04 |
quartz |
10 |
35 × 12.5 × 12.5 |
390 |
2 |
8.5 |
11 × 3.5 |
|
|
MO00390038-05 |
quartz |
50 |
35 × 12.5 × 52.5 |
1950 |
2 |
8.5 |
11 × 3.5 |
|
|
MO00390038-06 |
quartz |
1 |
35 × 12.5 × 12.5 |
39 |
2 |
15 |
11 × 3.5 |
|
|
MO00390038-07 |
quartz |
2 |
35 × 12.5 × 12.5 |
78 |
2 |
15 |
11 × 3.5 |
|
|
MO00390038-08 |
quartz |
5 |
35 × 12.5 × 12.5 |
195 |
2 |
15 |
11 × 3.5 |
|
|
MO00390038-09 |
quartz |
10 |
35 × 12.5 × 12.5 |
390 |
2 |
15 |
11 × 3.5 |
|
|
MO00390038-10 |
quartz |
50 |
35 × 12.5 × 52.5 |
1950 |
2 |
15 |
11 × 3.5 |
|
