Ultra Phosphor Oscilloscope

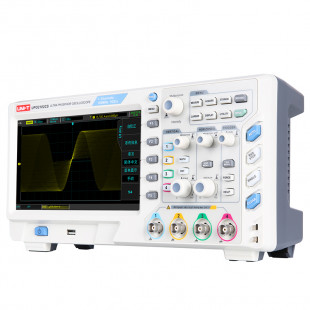

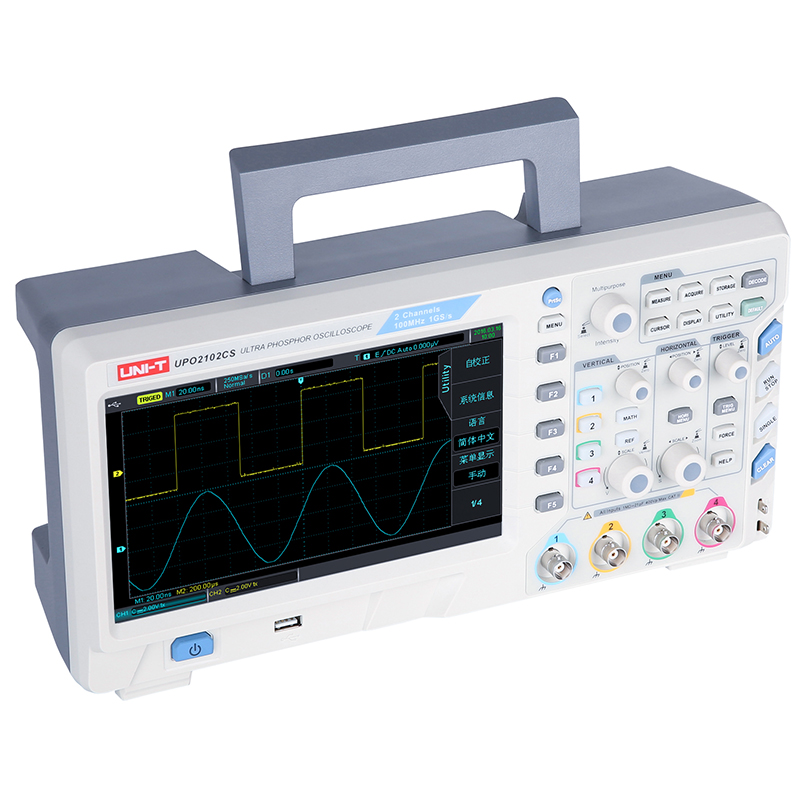

UNI-T's UPO2102CS digital oscilloscope is a 2 channel 100MHz bandwidth high performance device. It has a sampling rate of 1GS/s.
Features and benefits:
1. Sampling rate up to 1GS/s
2. Channels 2
3. Bandwidth 100MHz
4. Memory depth 28Mpts (standard)
5. Waveform capture rate up to 50,000wfms/s
6. With 256 level intensity grading display
7. Up to 65,000 frames for waveform record/replay
8. Support serial bus trigger and decoding (optional feature)
9. 8 inches, TFT LCD, WVGA (800*480)
10. Interface: USB Host, USB Device, LAN, VGA, AUX OUT, 10MHz input/output
Accessories
Probe×2/4 (1×,10× switchable)
Power Cord
USB Cable
PC Software CD
| Model | MO00640268 |
| Bandwidth | 100MHz |
| Channels | 2 |
| Sampling Rate | 1GS/s |
| Max. Memory Depth | 28Mpts |
| Waveform Capture Rate | 50,000wfms/s |
| Time Base Scale | 2ns/div ~ 50s/div |
| Input Impedance | (1MΩ±2%) || (20pF± 3pF) |
| Vertical Scale | 1mV/div ~ 20V/div (1MΩ) |
| DC Gain Accuracy | ±3% |
| Waveform Record | 65,000 frames |
| Trigger |
Edge, Alternate, Runt, Super picture, Nth Edge, Delay, Duration, Setup/Hold, Pulse Width, Slope, Video, Pattern, RS232/UART,I2C,SPI, USB |
| Bus Decode | Standard: Parallel; Optional: RS232/UART,I2C,SPI, USB |
| Waveform Operations | A+B, A-B, A×B, A/B, FFT, editable advanced operations |
| Number of Measurements | Display 5 measurements at the same time |
| Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
| Frequency Counter | Hardware 6 bits counter (Channels are selectable) |

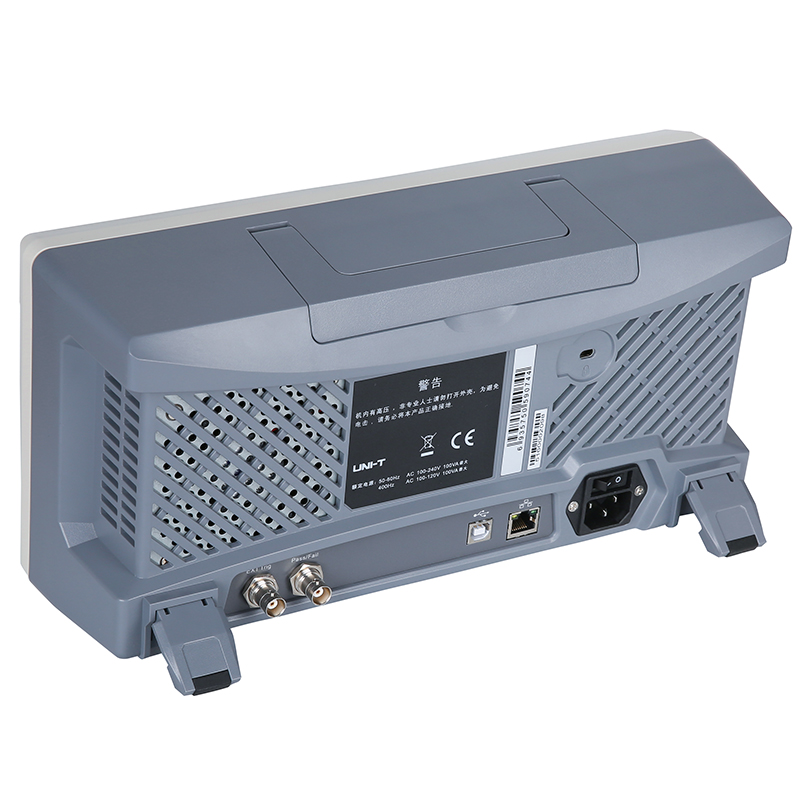

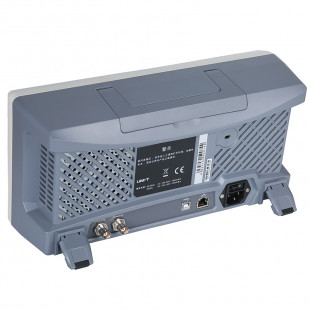

| Standard Interface | USB-Host, USB-Device, LAN,10MHz Input/Output, AUX Output (TrigOut, Pass/Fail) |
| General Characteristics | |
| Power | 100V ~ 240VACrms, 45Hz ~ 440Hz |
| Display | 8 inches, TFT LCD, WVGA (800×480) |
| Product Color | White and grey |
| Product Net Weight | 3.5kg ± 0.2kg |
| Product Size (W×H×D) | 336mm × 163.8mm × 105mm |
| Standard Accessories | Probe×2/4 (1×,10× switchable), Power Cord ,USB Cable, PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 2pcs |
| Standard Carton Measurement (L×W×H) | 550mm × 220mm × 325mm |
| Standard Carton Cross Weight | 9.5kg |
