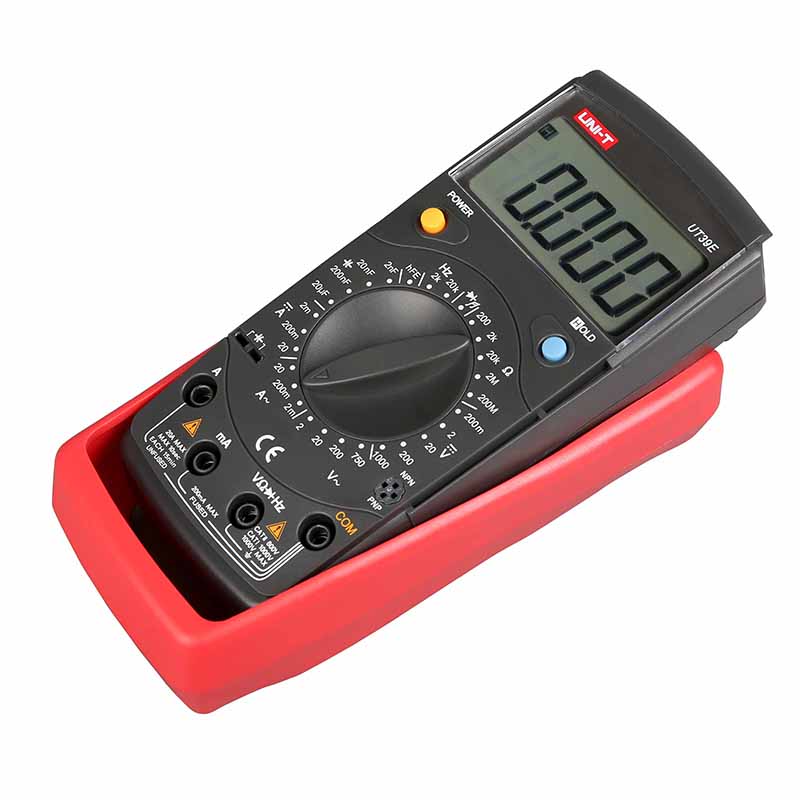

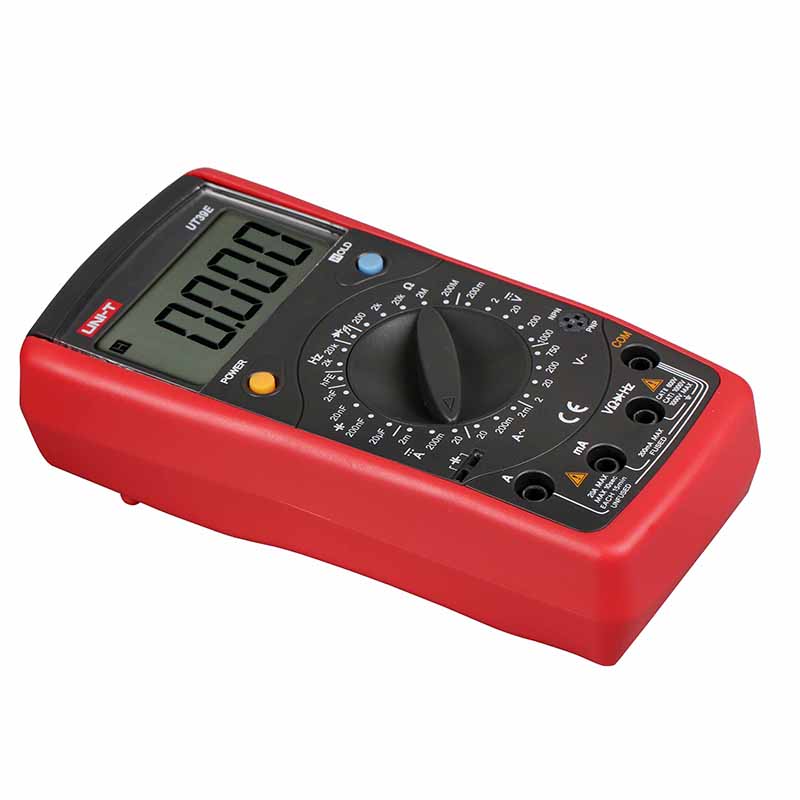

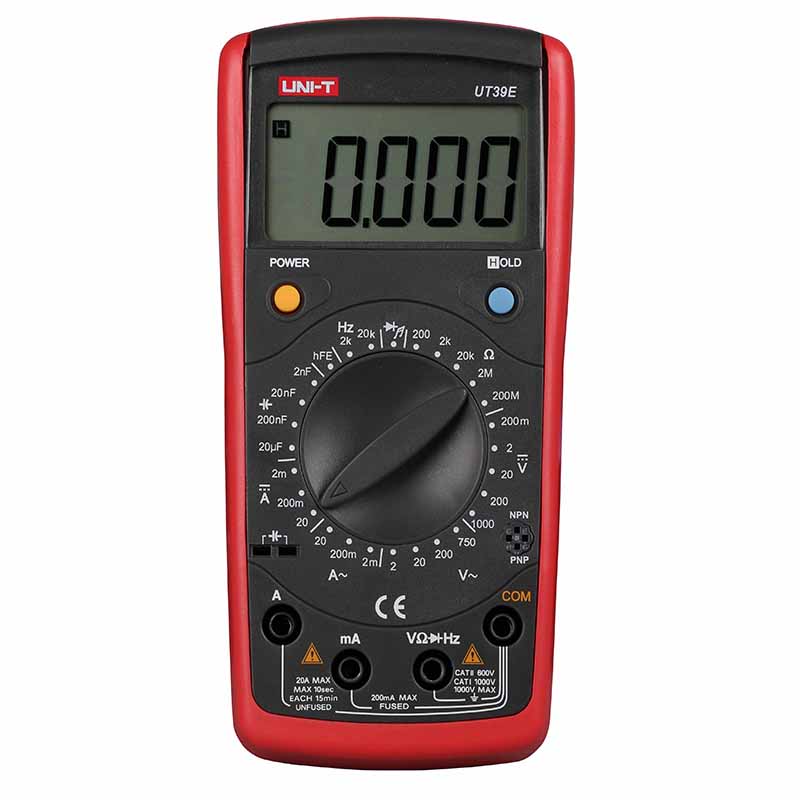

UT39E Modern Digital Multimeter
UT39 series is a handheld 3 1/2 digits multimeter with data hold function and overload protection.It can measure AC/DC voltage and current, resistance,capacitance, temperature, and frequency etc. There is a durable rubber case for anti-shaking.
Accessories
Test leads, battery, rubber case, English manual
| Specifications | Range | Best Accuracy |
| Model | UT39E | |
| DC voltage | 200mV/2V/20V/200V/1000V | ±(0.05%+3) |
| AC voltage | 2V/20V/200V/750V | ±(0.5%+10) |
| DC current | 2mA/200mA/20A | ±(0.5%+5) |
| AC current | 2mA/200mA/20A | ±(0.8%+10) |
| Frequency | 2kHz~20kHz | ±(1.5%+5) |
| Features | ||
| Max display | 19999 | |
| Manual range | √ | |
| Diode test | √ | |
| Buzzer continuity | √ | |
| Transistor | √ | |
| Data hold | √ | |
| Auto power off | √ | |
| Low battery indication | √ | |
| Input protection | √ | |
| Input imepdance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V NEDA 1604/6F22/006P | |
| Standard accessories | Test leads, battery, rubber case, English manual | |
| Product size | 172×83×38mm | |
| Product weight | 310g (battery included) | |
