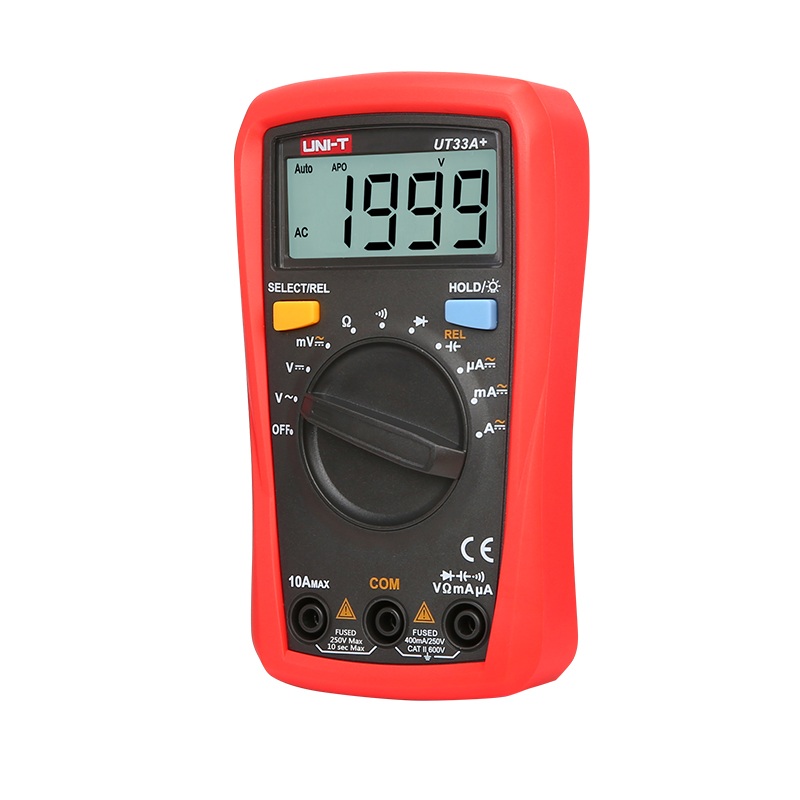

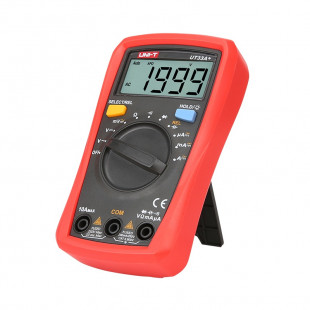

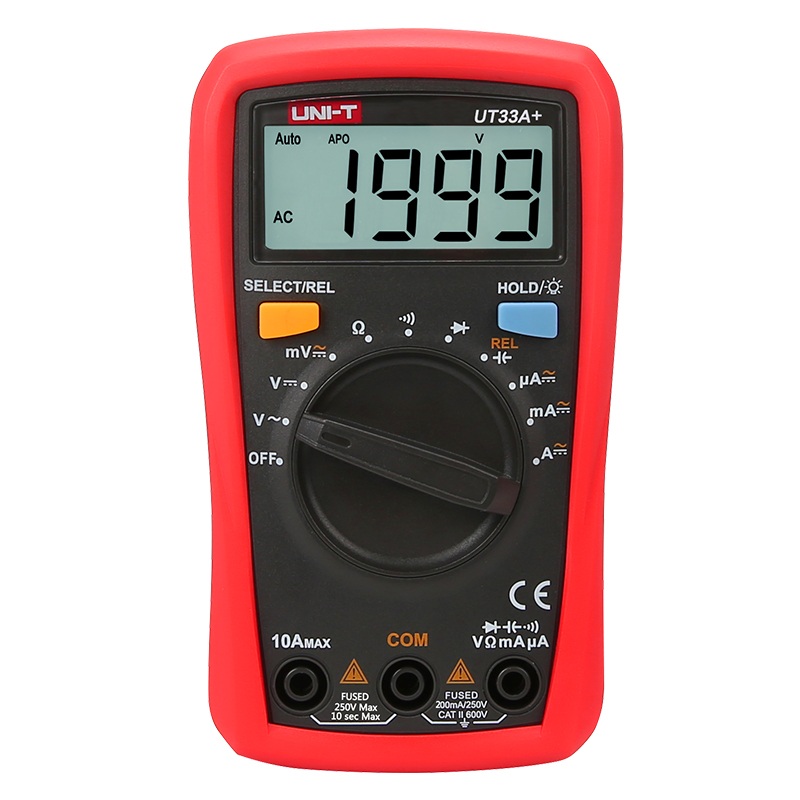

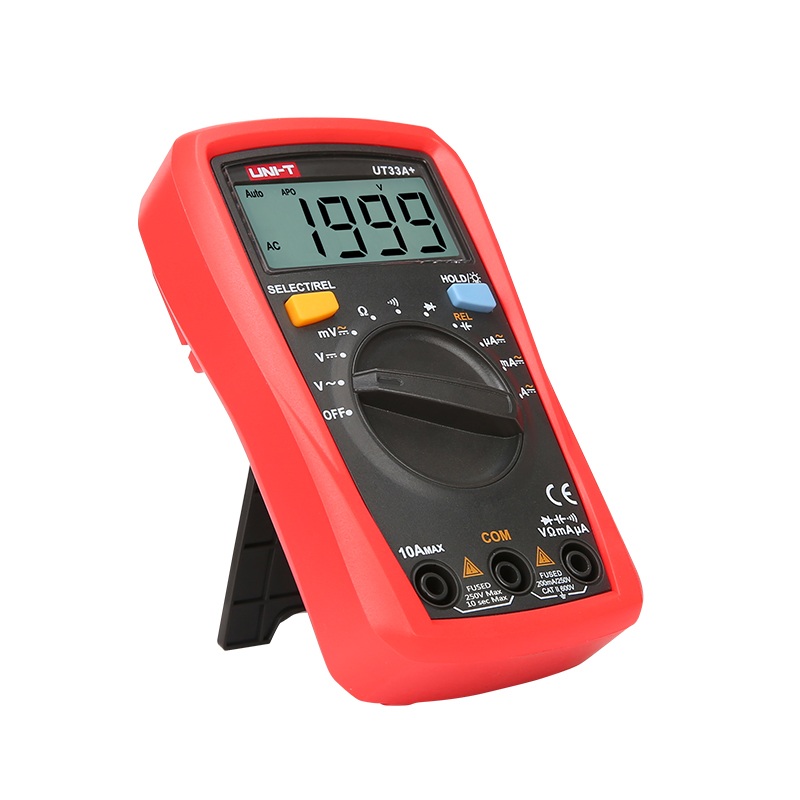

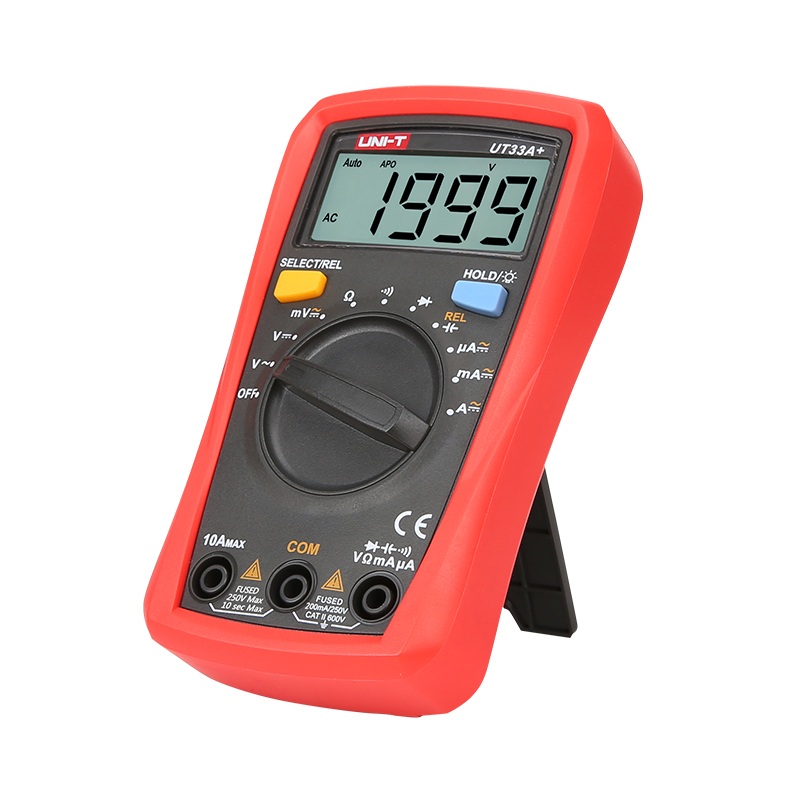

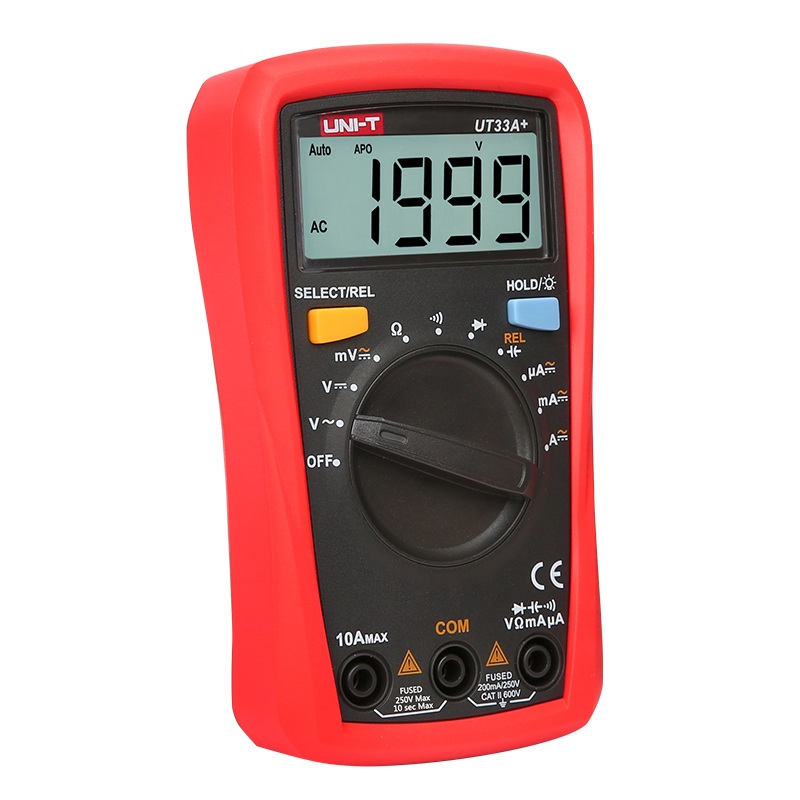

UT33A+ Palm Size Multimeter
The new generation UT33+ series redefines the performance standards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.
Main features
1. Clear LCD display
2. Equipped with comfortable protective cover, test lead hanging slot
3. 2m drop proof with precision protection
4. Auto power off
5. Auto backlight off
6. Loud buzzer
7. Ergonomically designed rotary switch
Accessories
Test lead, manual
| Specifications | Range | Accuracy |
| MO00640060 | ||
| DC voltage (V) | 200.0mV～600V | ±(0.5%＋3) |
| AC voltage (V) | 200.0mV～600V | ±(0.7%+3) |
| 200.0V～600V | ||
| DC current (A) | 200.0μA～10.00A | ±(1.0%+3) |
| AC current (A) | 200.0μA～10.00A | ±(1.2%+3) |
| Resistance (Ω) | 200.0Ω～200.0MΩ | ±(1.0％+2) |
| 200.0Ω～20.00MΩ | ||
| Capacitance (F) | 2.000nF～2.000mF | ±(3%+5) |
| Features | ||
| Max display | 1999 | |
| Auto power off | √ | |
| Auto backlight off | √ | |
| Diode test | √ | |
| Continuity buzzer | √ | |
| Drop test | 2m | |
| Test probe holder | √ | |
| Safety rating | CAT Ⅱ 600V | |
| Range selection | Auto | |
| Battery test | ||
| Temperature (°C/°F) | ||
| NCV | ||
| General Characteristics | ||
| Power | AAA battery (zn-mn) 1.5V×2 | |
| LCD size | 66mm*51mm | |
| Product color | Red and grey | |
| Product net weight | 473g | |
| Product size | 131mm×95mm×58mm | |
| Standard accessories | Test lead, manual | |
| Standard individual packing | Gift box, manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 640mm×310mm×350mm | |
