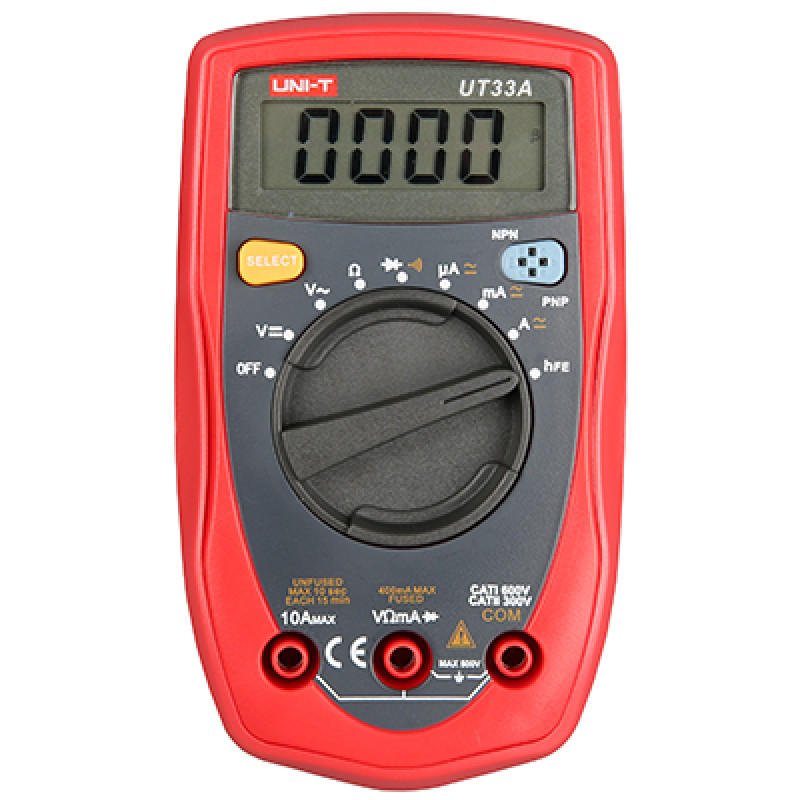

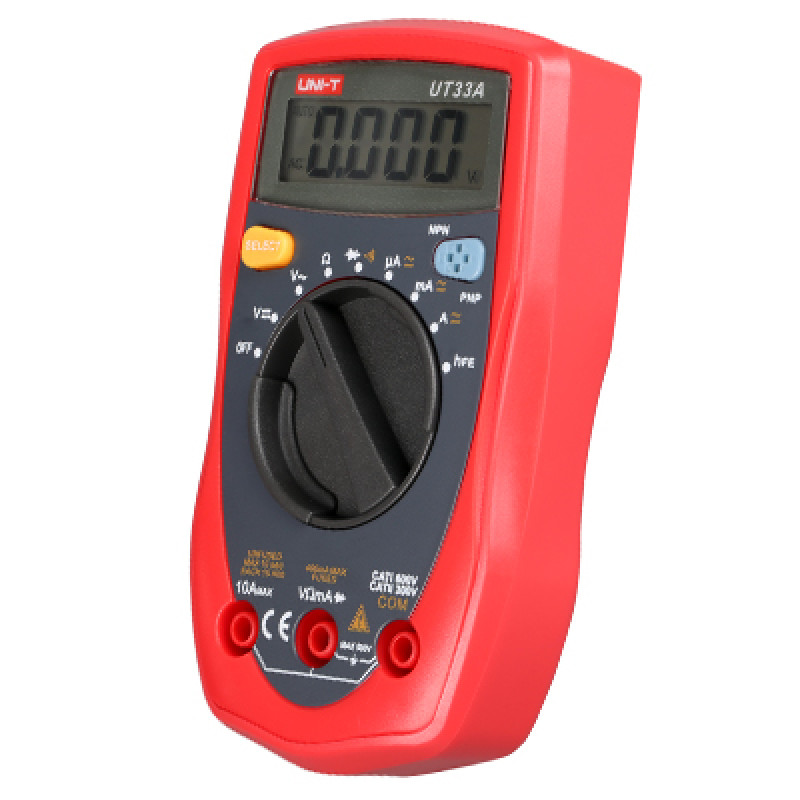

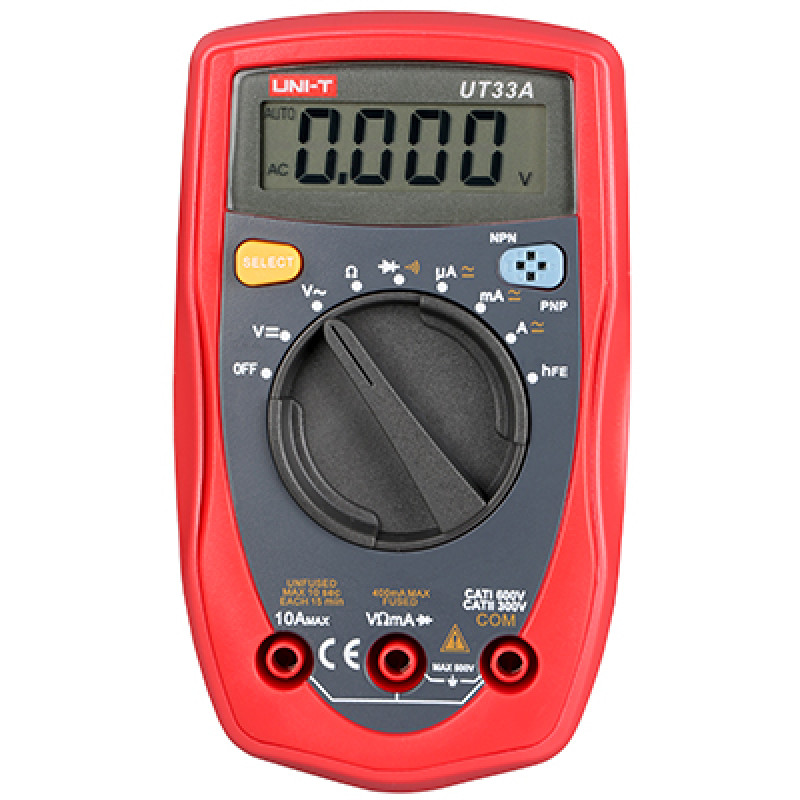

UT33A Palm Size Digital Multimeters
UNI-T's UT33A is a palm size digital multimeter featuring 4000 display count, auto range, low battery indication and over 10MΩ input impedance for DCV.
Main Features
1. Diode test
2. Auto power off
3. Complies with the safety standards of Double Insulation, overvoltage CAT I 600V, CAT II 300V and Pollution Degree 2
4. Complies with CE (European Union) directives
Accessories

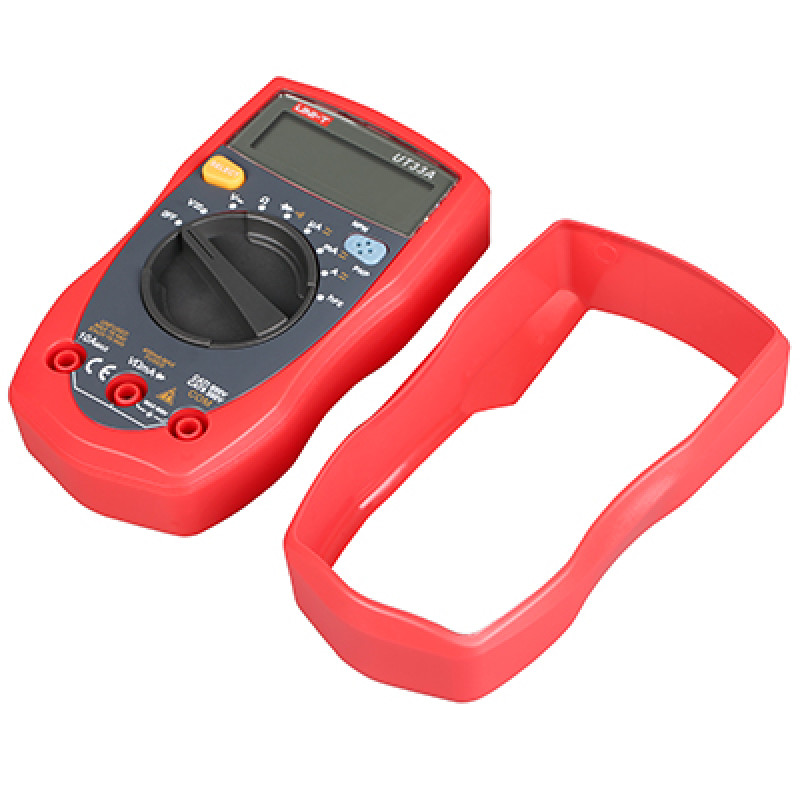

Batteries, test lead, holster
| Specifications | Range | Best Accuracy |
| Model | MO00640100 | |
| DC Voltage (V) | 400mV/4V/40V/250V | ±(0.8%+1) |
| AC Voltage (V) | 4V/40V/250V | ±(1.2%+3) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+2) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1.5%+5) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V Batteries (R03)×2 | |
| LCD Size | 48mm×16mm | |
| Product Color | Red and grey | |
| Product Net Weight | 179g (Including Holster) | |
| Product Size | 130mm×73.5mm×35mm | |
| Standard Accessories | Batteries, Test Lead, Holster | |

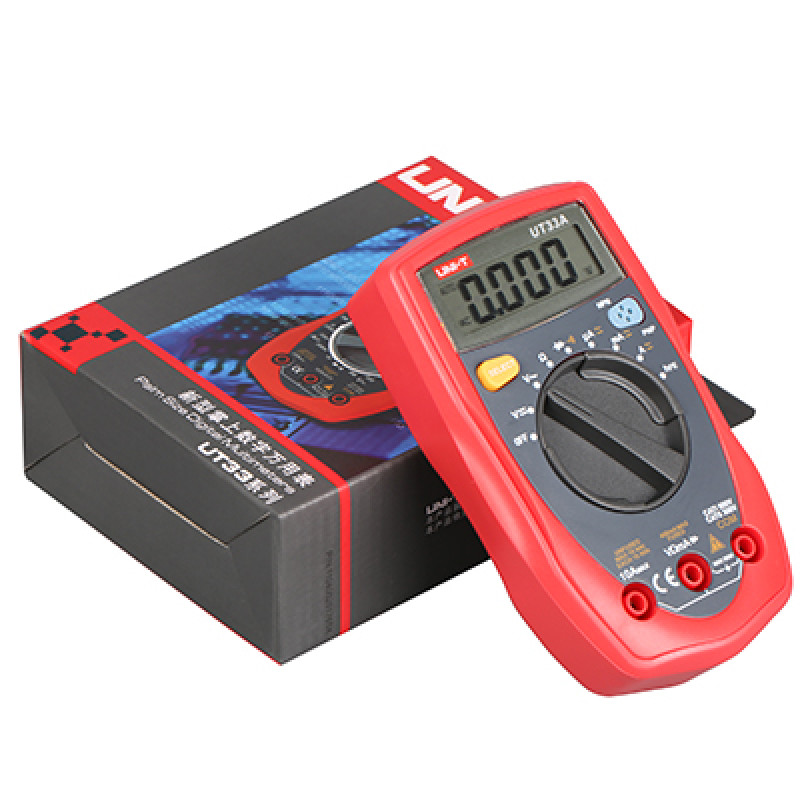

| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 66pcs | |
| Standard Carton Measurement | 595×310×350mm (0.065 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 19kg | |
