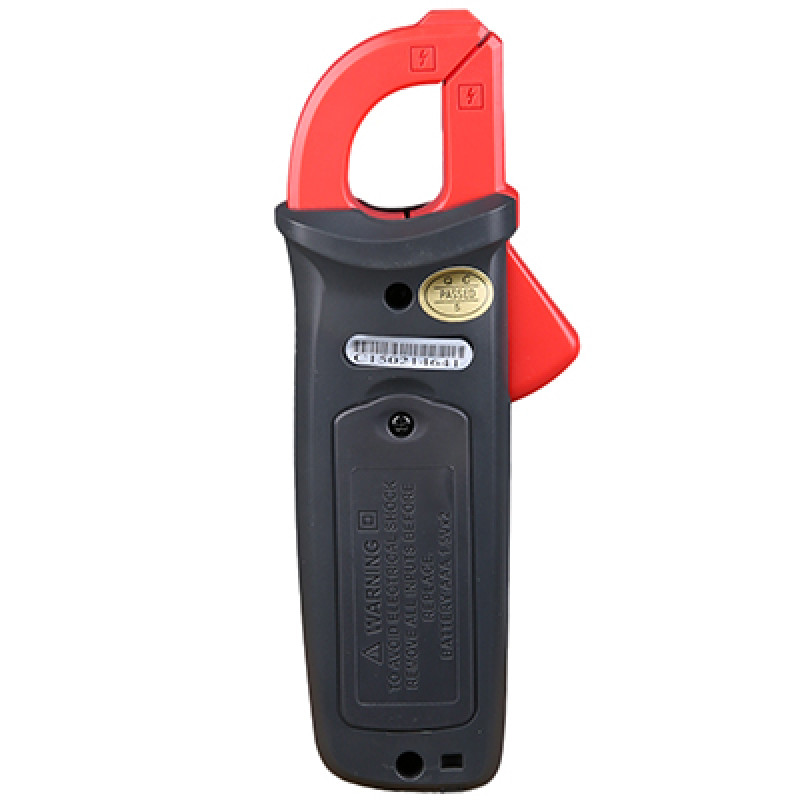

UT210E Mini Clamp Meters
UNI-T's UT210E is a mini 100A True RMS auto range digital clamp meter with 2000 display count and VFC function. It is convenient to use in narrow space.
Features
1. VFC, low pass filter
2. NCV
3. Ergonomic and lightweight
4. Auto range, 2~3/s sampling rate
5. True RMS
6. ZERO mode
7. LCD backlight, data hold
8. Auto power off, low battery indication
| Specifications | Range | Best Accuracy |
| Model | UT210E | |
| AC Current (A) | 2A/20A/100A | ±(2.5%+5) |
| DC Current (A) | 2A/20A/100A | ±(2%+3) |
| AC Voltage (V) | 2V/20V/200V/600V | ±(1%+3) |
| DC Voltage (V) | 200mV/2V/20V/200V/600V | ±(0.7%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(1%+2) |
| Capacitance (F) | 2nF/20nF/200nF/2μF /20μF/200μF/2mF/20mF |
±(4%+5) |
| Features | ||
| Display Count | 2000 | |
| Auto Range | √ | |
| Jaw Capacity | 17mm | |
| True RMS | √ | |
| Diode | Around 3.0V | √ |
| V.F.C. | √ | |
| NCV | √ | |
| Auto Power Off | Around 15 minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤2.5V | √ |
| Data Hold | √ | |
| Zero Mode | √ | |
| MAX/MIN | √ | |
| LCD Backlight | √ | |
| Input Protection | √ | |
| Input Impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | AAA 1.5V x 2 | |
| LCD Size | 39.3mm x 26.5mm | |
| Product Color | Red and grey | |
| Product Net Weight | 170g | |
| Product Size | 175mm x 60mm x 33.5mm | |
| Standard Accessories | Batteries, Test Lead | |
| Standard Individual Packing | Gift Box, Carrying bag, English Manual | |
| Standard Quantity Per Carton | 40pcs | |
| Standard Carton Measurement | 385mm x 345mm x 305mm (0.041 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 11kg | |
