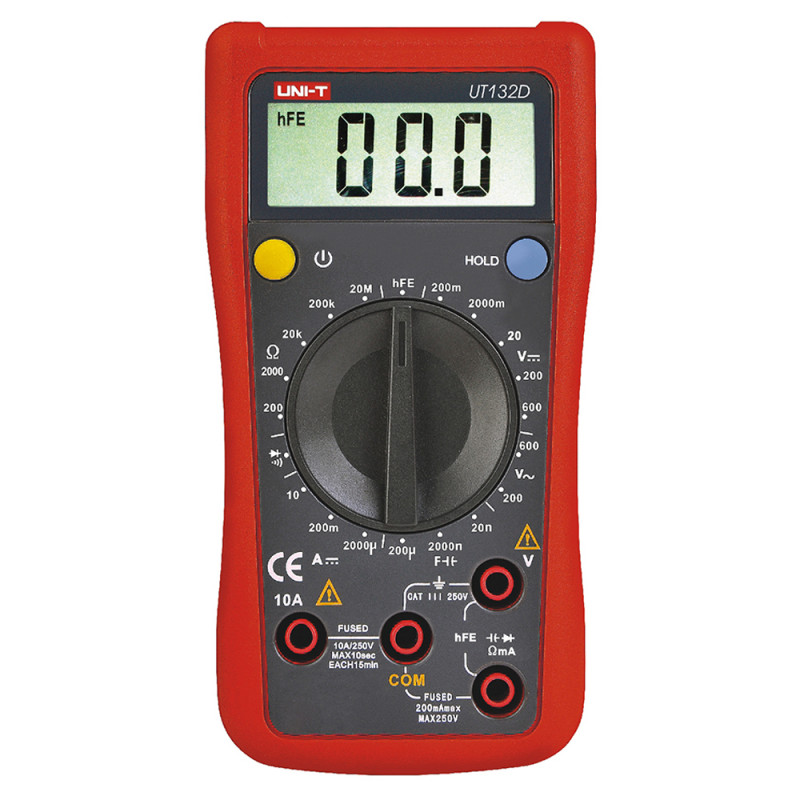

UT132D Palm Size Digital Multimeters
UNI-T's UT132D is a palm size 600V digital multimeter with over 10MΩ input impedance for DCV to ensure test accuracy. It is easy to operate and stable.
Product Description
UT132D is a palm size 600V digital multimeter with over 10MΩ input impedance for DCV to ensure test accuracy. It is easy to operate and stable.
Accessories
Battery, test lead, multi-purpose socket
| Specifications | Range | Best Accuracy |
| Model | MO00640070 | |
| DC Voltage (V) | EU: 200mV/ 2000mV/ 20V/ 200V/ 600V | ±(0.5%+2) |
| ROW: 200mV/ 2000mV/ 20V/ 200V/ 250V | ||
| AC Voltage (V) | EU: 200V/600V | ±(1.2%+3) |
| ROW: 200V/250V | ||
| DC Current (A) | 2000μA/ 200mA/10A | ±(1%+2) |
| Resistance (Ω) | 200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 20MΩ | ±(0.8%+5) |
| Capacitance (F) | 20nF/ 2000nF/ 200μF | ±(4%+3) |
| Temperature (°C) | -40 °C ～ 1000°C | |
| Features | ||
| Display Count | 2000 | |
| Manual Range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 49mm x 18mm | |
| Product Color | Red and grey | |
| Product Net Weight | 200g | |
| Product Size | 72mm × 137mm × 35mm | |
| Standard Accessories | UT132C-Battery, test lead, multi-purpose socket, point contact temperature probe | |
| UT132D-Battery, test lead, multi-purpose socket | ||
| Standard Individual Packing | Gift box, English manual | |
| Standard Quantity Per Carton | 66pcs | |
| Standard Carton Measurement | 595mm × 360mm × 420mm (0.09CBM per standard carton) | |
| Standard Carton Gross Weight | 25.7kg | |
