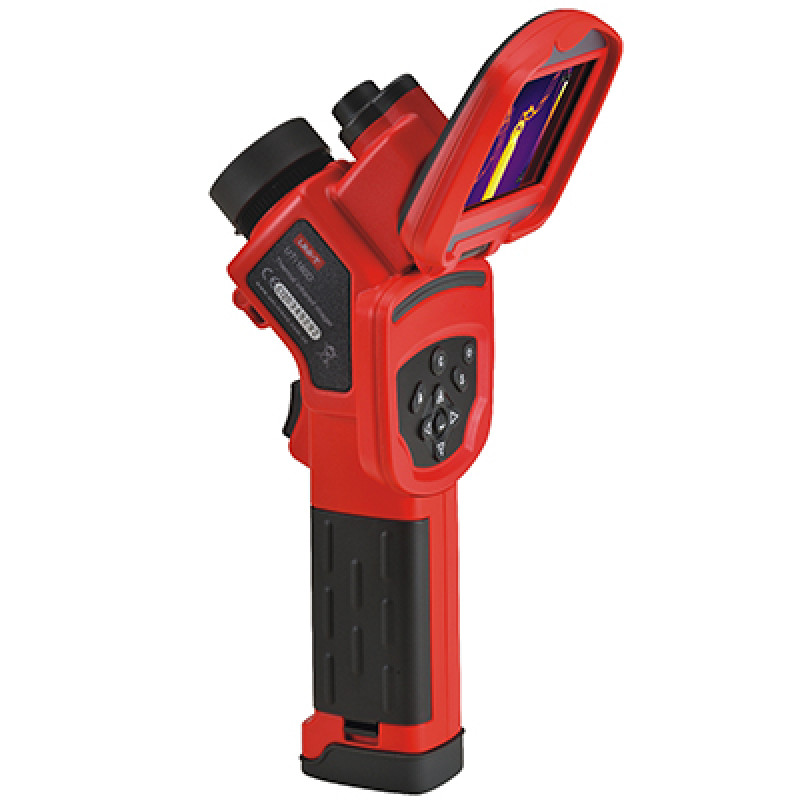

Thermal Imager UTi160D
UNI-T's UTi160D thermal imaging camera has a temperature range of -20°C to 400°C. It also includes visible light camera and flashlight.
Features
UTi160D: Offers visual camera, capable of capturing high-quality IR pictures; multiple fusion display modes available to cover your needs in optimal manner; 3.5 inch rotatable LCD; and professional PC analysis software.
Accessories
Batteries, Power Charger, SD Card (2G), Card Reader, Camera Cover, Software CD
|
Specifications |
|
|
Model |
MO00640043 |
|
Sensor Type |
Uncooled Focal Plane Arrays |
|
Resolution |
160*120 pixels |
|
Field of View /Minimum Focus Distance |
20°×15°/0.1m |
|
Spatial Resolution (IFOV) |
2.2mrad |
|
Visible Light Resolution |
640×480 Full Color |
|
Image Mode |
Infrared/Visible Light/Fusion/PIP |
|
Focus |
Manual |
|
Infrared Spectral Bandwidth |
8~14um |
|
NETD |
≤0.08℃@30℃ |
|
Temperature Range |
-20℃~400℃ |
|
Accuracy |
±2°C or ±2% (whichever is greater) |
|
Features |
|
|
Display Type |
3.5"TFT LCD, Rotatable |
|
Palettes |
Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted |
|
Image Adjustment |
Auto/Manual |
|
Image Format |
*·TIR, *.CCD |
|
Video Output |
Support; PAL (50Hz) or NTSC (60Hz) (With Optional Base) |
|
Measurement Mode |
4 Movable Spots, Area (MAX, MIN) isothermality analysis |
|
Parameters Setting |
Emissivity, Distance, Temperature, Relative Humidity |
|
Temperature Calibration |
√ |
|
High/Low Temperature Alarm |
√ |
|
Laser Pointer |
√ |
|
Image Capture |
√ |
|
Image Storage |
2GB SD Card (Support up to 16GB) |
|
Temperature Units |
℃/℉ |
|
Flashlight |
Yes |
|
Support Languages |
English / Simplified Chinese |
|
Power Mode |
Standard/Power Saving/Auto Power Off |
|
Analyzing Software |
Professional Version. Analysis any temperature point and creates report in WORD format. |
|
Water Proof Rating |
IP54 |
|
Impact/Vibration |
25G/2G |
|
General characteristics |
|
|
Power |
Li-ion 1250mAh |
|
Product Color |
Red and grey |
|
Product Net Weight |
500g |
|
Product Size |
170mm × 80mm × 160mm |
|
Standard Accessories |
Batteries, Power Charger, SD Card (2G), Card Reader, Camera Cover, Software CD |
|
Standard Individual Packing |
Gift box, Toolbox, User Manual |
|
Standard Quantity Per Carton |
5pcs |
|
Standard Carton Measurement |
545mm × 380mm × 325mm (0.067 CBM Per Standard Carton) |
|
Standard Carton Gross Weight |
11.6kg |
|
Optional Accessories |
Power Adapter, 16G SD card, Vehicular Power Cord, 3.8° / 6.4° / 12°/ 38° Lens, Tailered-made Temperature Range (600℃, 1000℃, 1500℃ Available) |
