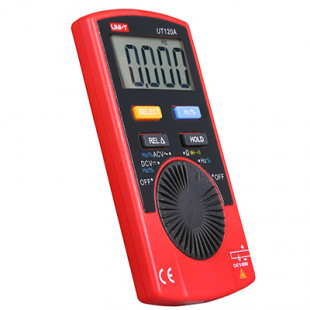

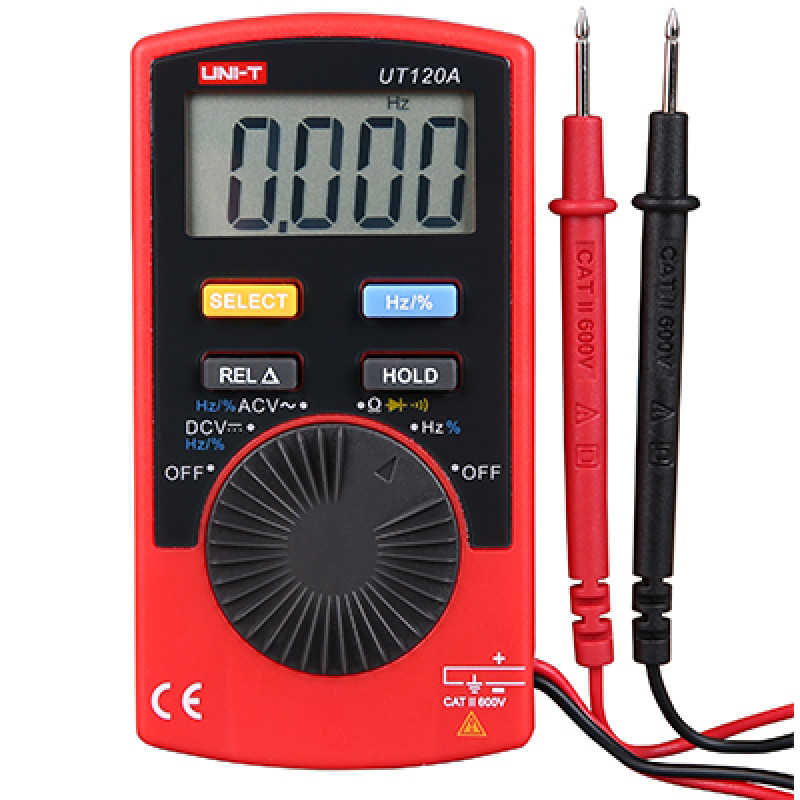

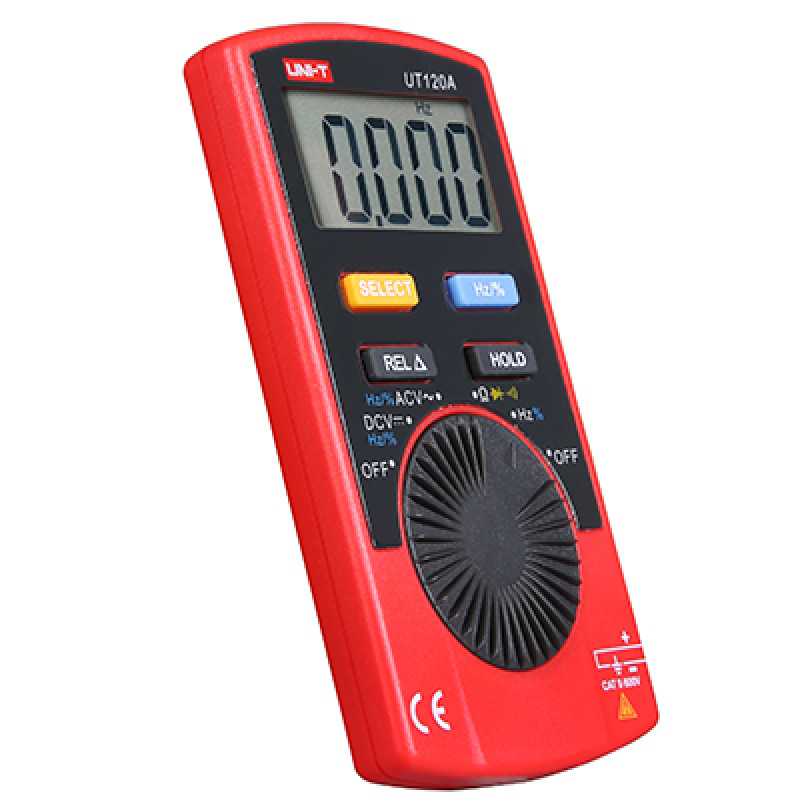

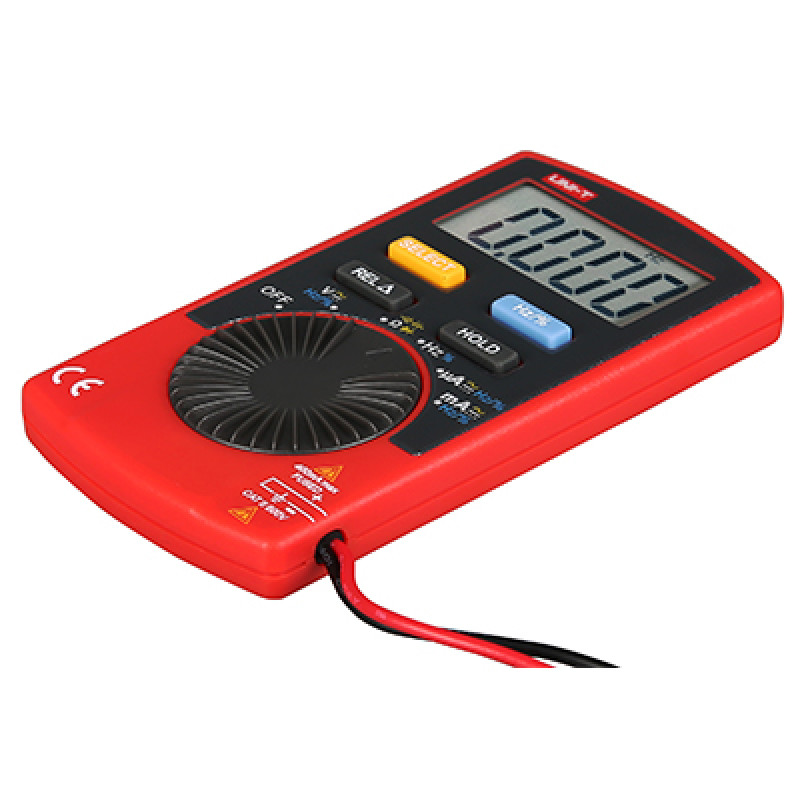

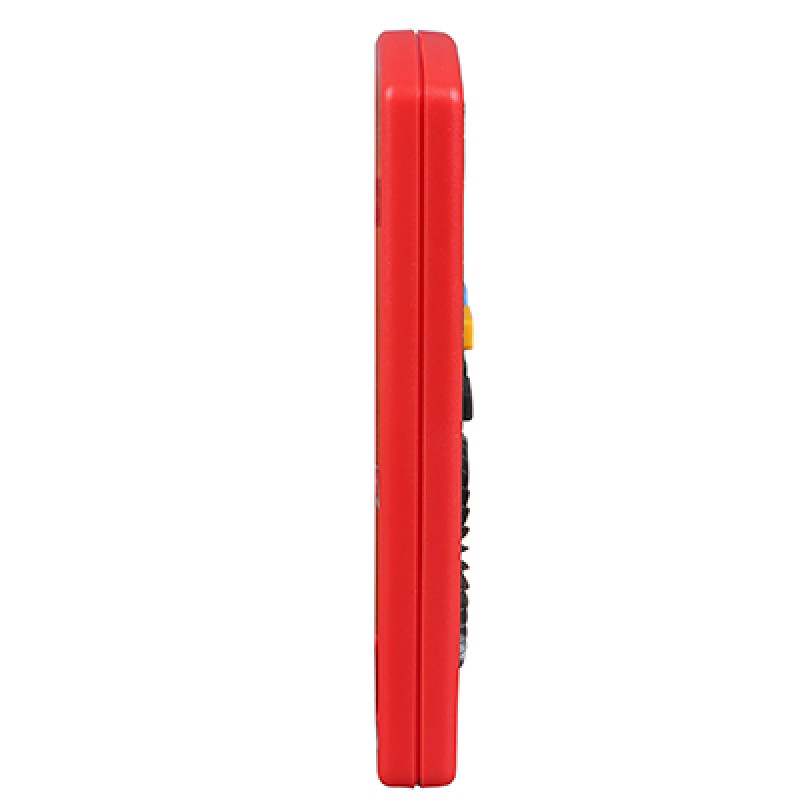

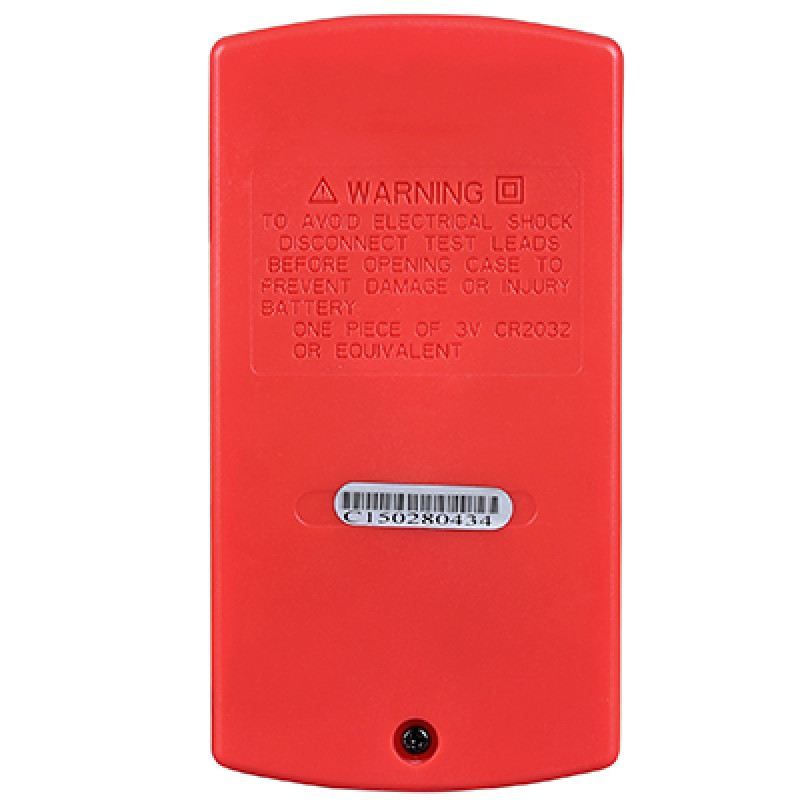

UT120C Pocket Size Digital Multimeter
UNI-T's UT120C is a pocket size auto range digital multimeter. It measures AC/DC current, circuit continuity with data hold and duty cycle.
Features
1. Auto power off
2. Capacitance measurement
3. AC/DC current measurement
4. Auto range
5. 4000 display count
6. Data hold and relative mode
Accesories
Battery, carrying case
| Specifications | Range | Best Accuracy |
| Model | MO00640073 | |
| DC Voltage (V) | 400mV/4V/40V/600V | ±(0.8%+1) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2%+3) |
| DC Current (A) | 400μA/4mA/40mA/400mA | ±(1.0%+3) |
| AC Current (A) | 400μA/4mA/40mA/400mA | ±(1.5%+5) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | ±(4%+3) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.5%+3) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto Power Off | Around 30 minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤2.4V | √ |
| Data Hold | √ | |
| Relative Mode | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 3V Battery (CR2032) | |
| LCD Size | 43mm X 22mm | |
| Product Color | Red and grey | |
| Product Net Weight | 76g | |
| Product Size | 110mm X 58.2mm X 10.8mm | |
| Standard Accessories | Battery, carrying case | |
| Standard Individual Packing | Blister, English manual | |
| Standard Quantity Per Carton | 100pcs | |
| Standard Carton Measurement | 750mm × 275mm × 490mm (0.1CBM per export carton) | |
| Standard Carton Gross Weight | 21.9kg | |
