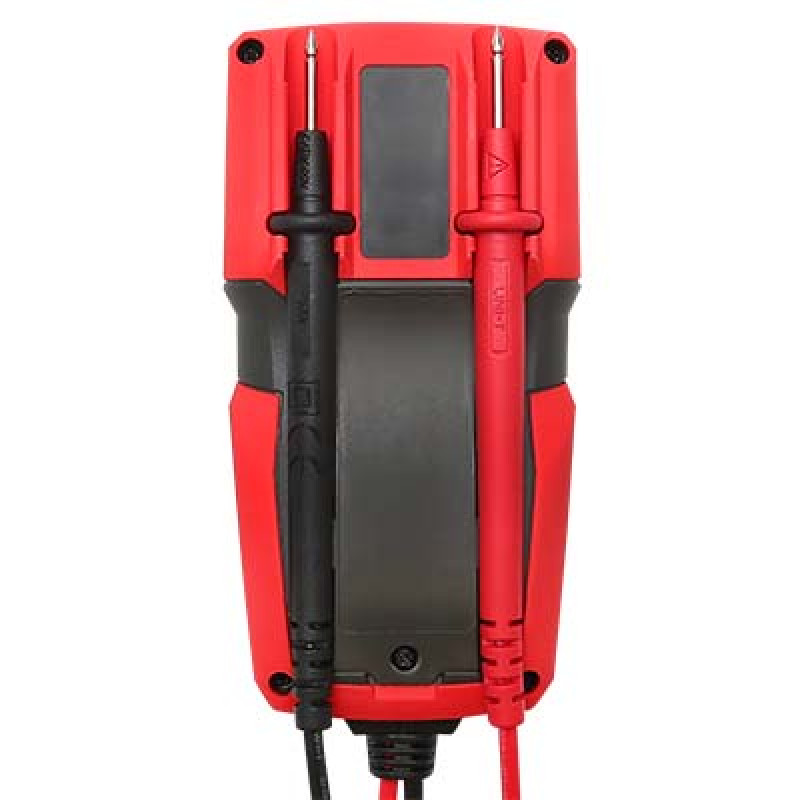

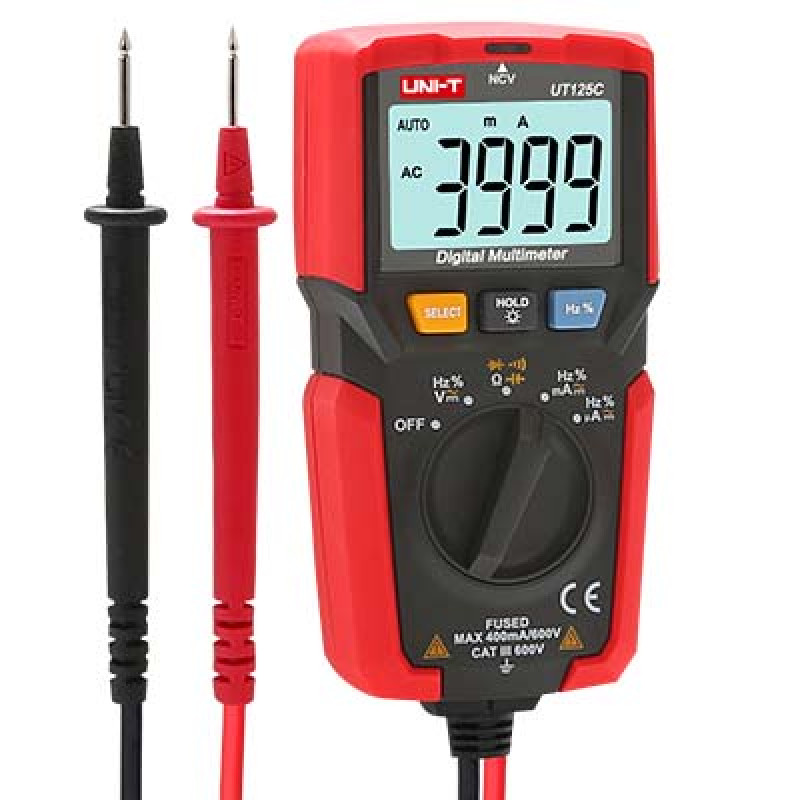

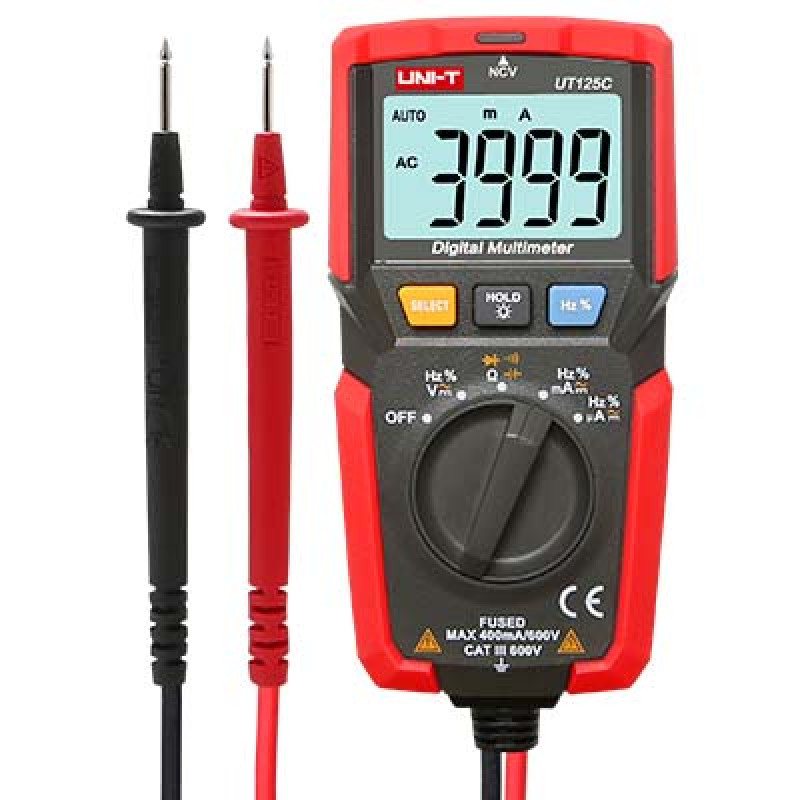

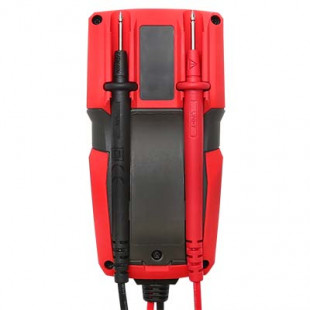

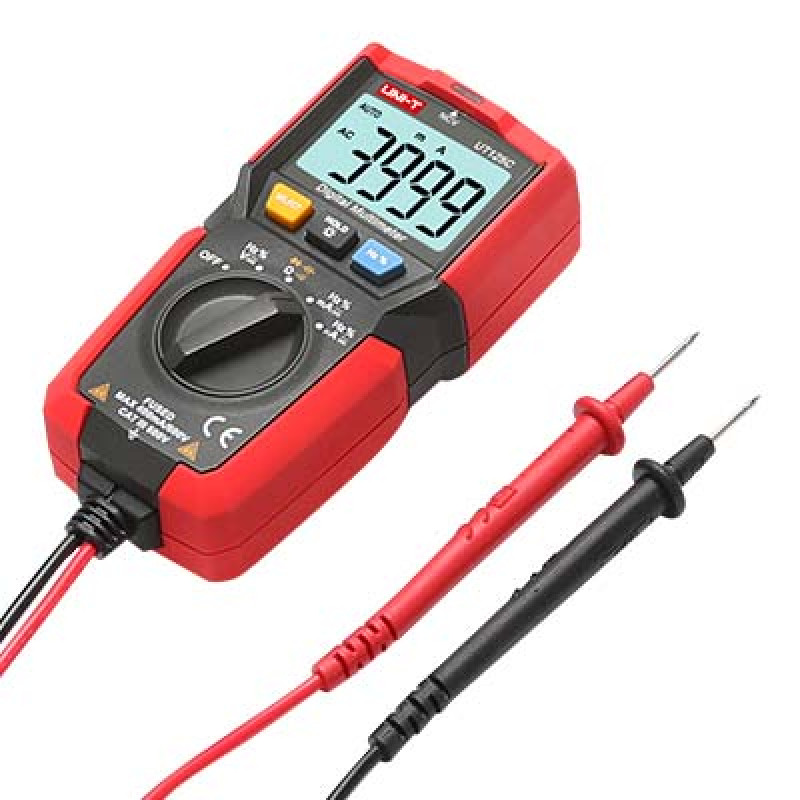

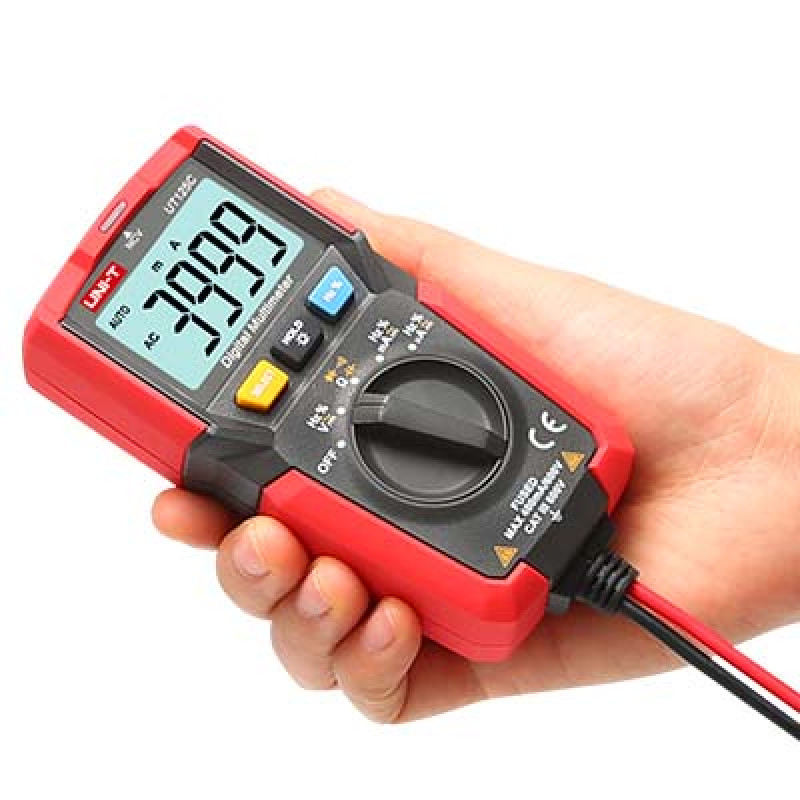

UT125C Pocket Size Digital Multimeter
UT125C is a palm-size, stable and reliable multimeter with 4000 display counts. It is an ideal tool for measuring AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity with overload protection. This product complies with CAT III 600V and is granted with CE and cETLus certificates.
Main features
1. Small size, easy to carry and operate
2. 600V DC/AC voltage measurement
3. 400mA DC/AC current measurement
4. Resistance/Capacitance/Diode/Continuity test
5. Frequency/Duty cycle measurement
6. CE (EMC, LVD, RoHS), cETLus
7. CAT III 600V
8. 1m drop test
| Specifications | Range | Best Accuracy |
| DC Voltage | 400mV~600V | ±(0.5%+5) |
| AC Voltage | 4V~600V | ±(1.2%+5) |
| DC Current | 400μA~400mA | ±(1.8%+5) |
| AC Current | 400μA~400mA | ±(2.0%+8) |
| Resistance | 400Ω~40MΩ | ±(1.0%+5) |
| Capacitance | 50nF~100μF | ±(4%+10) |
| Frequency | 10~60kHz | ±(0.1%+5) |
| Duty Cycle | 20%~80% | For reference only |
| Features | ||
| NCV | √ | |
| Diode Test | √ | |
| Continuity Test | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Operation Temperature | 0℃～50℃ | |
| Safety rating | CAT III 600V | |
| General Characteristics | ||
| Product Color | Red and grey | |
| Product Net Weight | 180g | |
| Product Size | 112 X 58 X 35mm | |
| Standard Individual Packing | Gift Box, Manual | |
| Standard Quantity Per Carton | 60pcs | |
| Standard Carton Size | 510 X 290 X 280mm | |
| Standard Carton Gross Weight | 13.1kg | |
