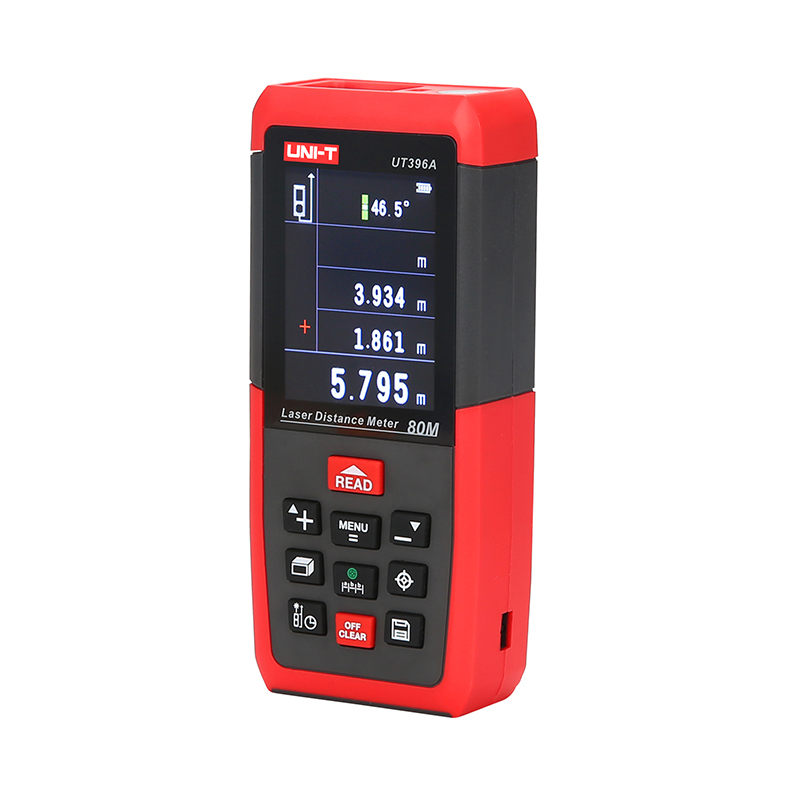

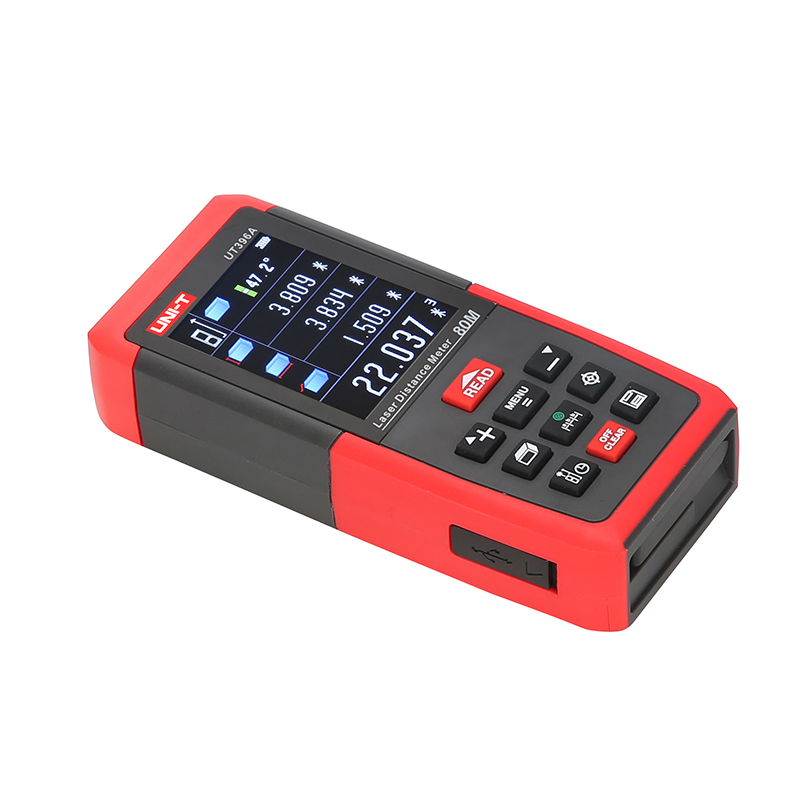

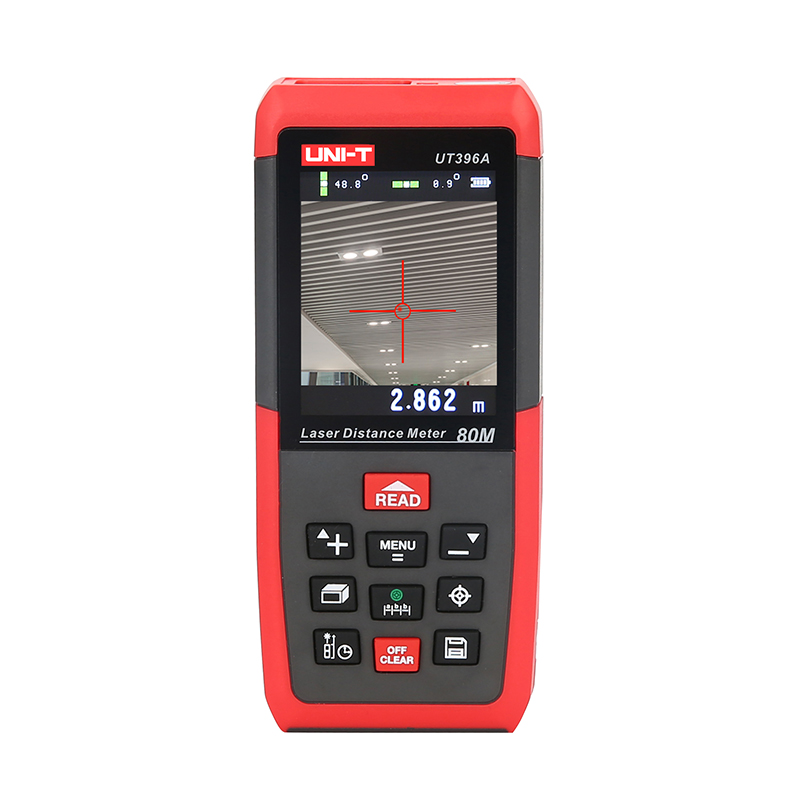

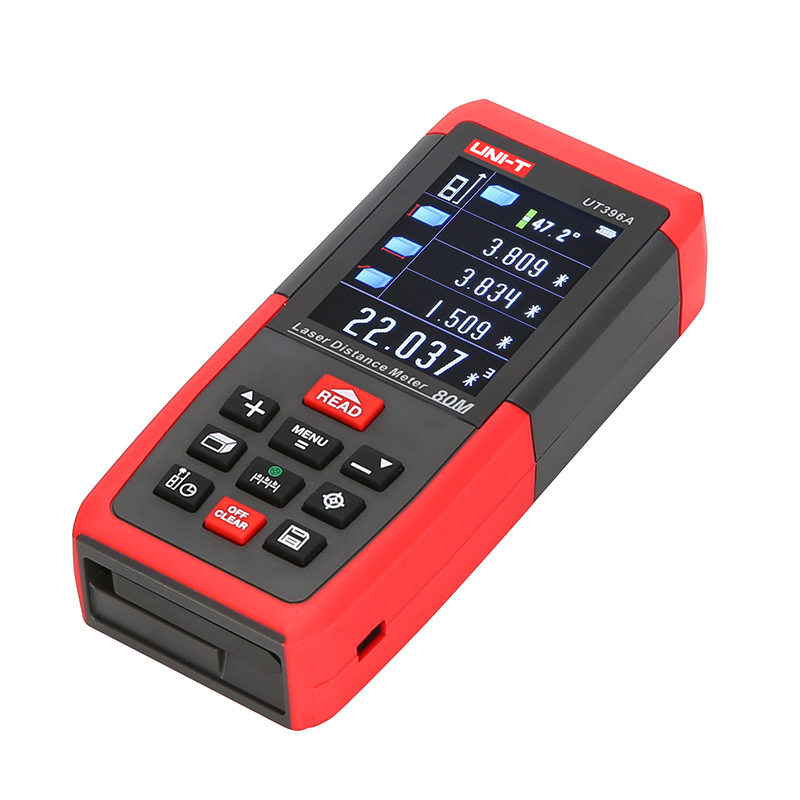

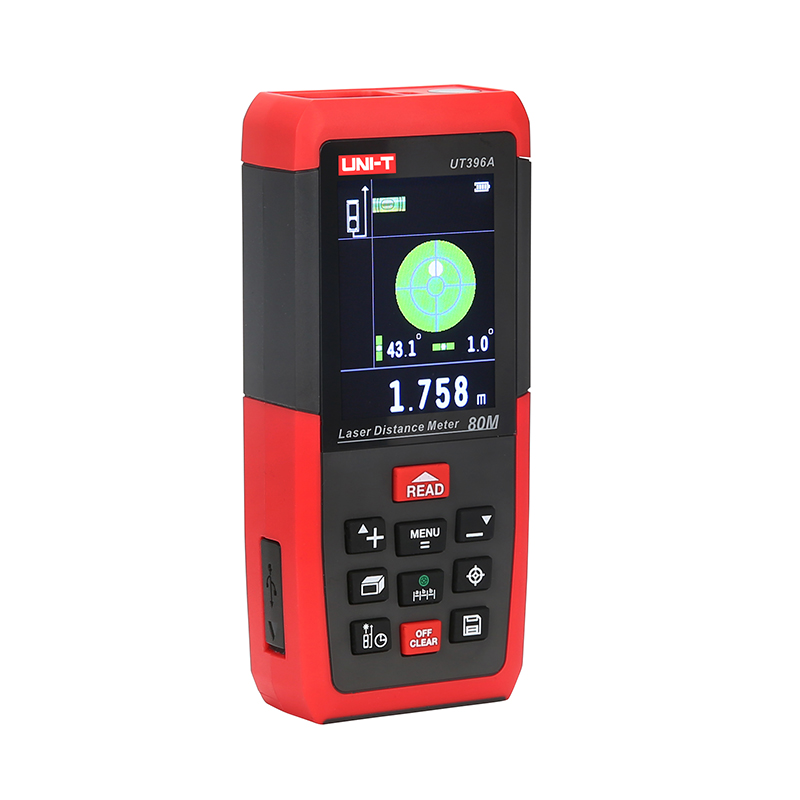

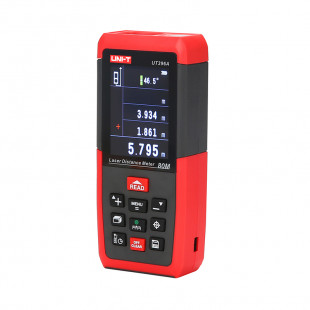

Laser Distance Meter
UT396A is a professional laser distance meter with color LCD display, electronic multi-axis leveler, real-time camera display on target object, and other special features. Its unique operating system, friendly user interface, and personalized settings option all make these devices the perfect choice for professional distance measurement.
Features
1. Multi-directional electronic leveler
2. Camera assistance
3. Color display interface
4. USB interface
5. Double injection molding
6. Max laser power: <1mW
7. Up to 100 sets of data storage
8. More than 15 measurement functions
Accessories
Hanging cord, USB interface cable, reflector
| Specifications | |
| Model | MO00640207 |
| Accuracy | ±(2.0mm+d*5/100000) |
| Range | 0.05~80m |
| Minimum Unit | 1mm |
| Unit Display | m/in/ft |
| Laser | 635nm, <1mW, Class II |
| Features | |
| Camera | √ |
| Continuous Measurement | √ |
| Area/Volume Calculation | √ |
| Pythagorean Theorem Calculation | √ |
| Triangle Angle/Height/Area Measurement | √ |
| Inclination | -90~90° |
| Distance Add/Subtract | √ |
| Area Add/Subtract | √ |
| Volume Add/Subtract | √ |
| Staking-out Test | √ |
| Delay Test | √ |
| MAX/MIN | √ |
| Data Storage | 100 |
| Auto Laser Off | 20~120s |
| Auto Power Off | 100~300s |
| Electronic Leveler | √ |
| USB Connector | √ |
| General Characteristics | |
| Power | 1.2V 800mAh AAA NI-MH battery×3 |
| Product Color | Red and grey |
| Product Net Weight | 84g |
| Product Size | 126mm×56mm×28mm |
| Standard Accessories | Hanging cord, USB interface cable, reflector |
| Standard Individual Packaging | Gift box, carrying bag, manual, rechargable battery |
| Standard Quantity Per Carton | 60pcs |
| Standard Carton Measurement | 520mm×470mm×345mm |
| Standard Carton Gross Weight | 14.6kg |
