MX-S and MX-F Vortex Mixer, Orbital, Max.Speed 2500rpm, DLAB

  • Brand:DLAB
  • Model:MX-S/MX-F
  • Availability:In Stock
RM604.00

Available Options


+ -

Description PDF

Ask Question About Product

Note: HTML is not translated!

Description:

DLAB Vortex Mixers are ideal instruments for mixing liquid components in tubes, resuspension of cells, using an eccentric mechanism. They are widely used in biological and

chemical analysis applications.




Features:

•  Touch operation or continuous mode

•  Variable speed control from 0 to 2500rpm

•  Used for various mixing applications with optional adapters

•  Specially designed vacuum suction feet for body stability

•  Robust aluminium-cast construction



Specification:

Specifications

MX-S
(Adjustable speed)

Specifications

MX-F
(Fixed speed)

Voltage

110-120V/220-230V,50/60Hz

Voltage

110-120V/220-230V,50/60Hz

Power

60W

Power

60W

Mixing motion

Orbital

Mixing motion

Orbital

Orbital diameter

4mm

Orbital diameter

4mm

Motor type

Shaded pole motor

Motor type

Shaded pole motor

Motor rating input

58W

Motor rating input

58W

Motor rating output

10W

Motor rating output

10W

Speed range

0-2500rpm

Speed range

2500rpm

Speed display

Scale





Run type

Touch operation/Continuous

Run type

Touch operation/Continuous

Dimension[W×H×D]

127×130×160mm

Dimension[W×H×D]

127×130×160mm

Weight

3.5kg

Weight

3.5kg

Permissible  ambient temperature

5-40 °C

Permissible  ambient temperature

5-40

Permissible relative humidity

80%RH

Permissible relative humidity

80%RH

Protection class

IP21

Protection class


IP21




MX-S Vortex Mixer (Adjustable Speed)



MX-F Vortex Mixer (Fixed Speed)

MX Series with Accessories

Tube Holder Rod's Assembly and Use:





Accessory List

Cat. No. P/N Descriptions

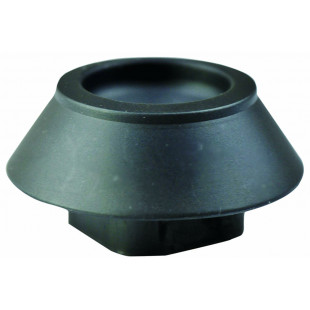

18900034 VT1.1 Standard top cupfor <Ø30mm tubes and small vessels
18900044 VT1.2 Tube holding rod, used with VTI.3.1 to VTI.3.5
18900505 VT1.3  VT1.3.7 Universal top plate and vacuum suction foot package(include one top plate and four suction foot)
18900020 VT1.3.1 Tube adapter, for 48 holes test tubes, Ø6mm, used with VT1.3/ VT1.2/PS1.1
18900021 VT1.3.2  Tube adapter, for 15 holes test tubes, Ø10mm, used with VT1.3/ VT1.2/PS1.1
18900395 VT1.3.8 Tube adapter, for 24 holes test tubes, Ø10mm, used with VT1.3/ VT1.2/PS1.1
18900022 VT1.3.3 Tube adapter, for 16 holes test tubes, Ø12mm , used with VT1.3/ VT1.2/PS1.1
18900023 VT1.3.4  Tube adapter, for 8 holes test tubes, Ø16mm, used with VT1.3/ VT1.2/PS1.1
18900024 VT1.3.5  Tube adapter, for 8 holes test tubes, Ø20mm, used with VT1.3/ VT1.2/PS1.1
18900043 VT1.3.6  Platform pad, for <Ø99mm tubes and small vessels

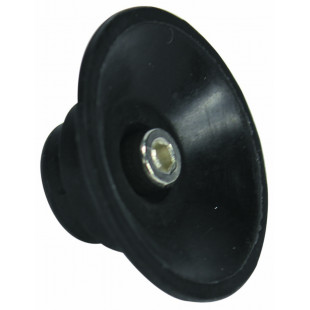

18900158 VT1.3.7  Rubber vacuum suction foot with screw, 1pc
