Product Information:

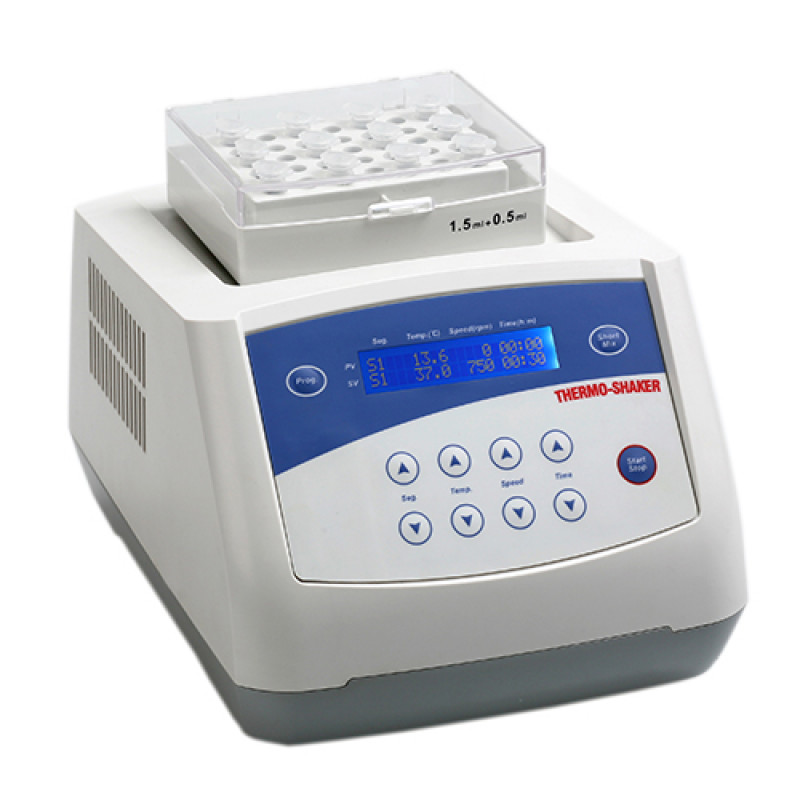

Designed for simultaneous heating, cooling and mixing of small samples, MS-100 and
MSC-100 can be supplied with interchangeable blocks for microtubes. Mixing, heating
and cooling modes can be used either simultaneously or independently. The main body
of the Mixing Block can be used with different kinds of blocks
Features:
1. LCD display. It is easy to set up and use
2. Accurately control and display time, temperature and speed
3. Over-heating protection device ensures safety & reliability
4. Low noise working even under the speed of 1,500rpm
5. Conforms to CE safety standard
6. Peltier design of MSC-100 provides thermal control in a compact unit
7. Easy to replace the metal blocks and is very simple to clean and sterilize
| Model | MSC-100 |
| Temperature Control Range |
0°C~100°C if Ambient temp.≤20°C
4°C~100°C if Ambient temp.≤25°C
10°C~100°C if Ambient temp.≤30°C
|
| Temperature Setting Range | 0°C~100°C |
| Timer | 1min~99h59min |
| Temp. Control Accuracy | ±0.5°C |
| Display Accuracy | ±0.1°C |
| Mixing Speed | 200~1500rpm |
| Heating Time(25 to 100°C) | ≤15min |
| Cooling Time |
≤30min (from RT. to RT.-20°C)
≤15min (from 100°C to 20°C)
|
| Mixing Orbit | 2mm |
| Dimension(mm) | 300 x 220 x 175 |
| Net Weight | 8.5kg |

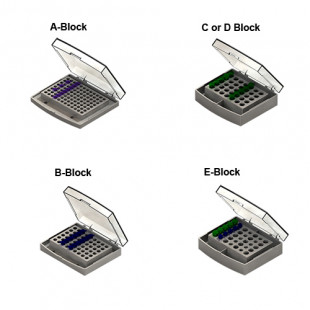

Blocks for MS-100/MSC-100:
| Code | Type | Description | Max.Temp. | Max.Speed |
| MO00040045-01 | A | 96x0.2ml tubes | 100°C | 1500rpm |
| MO00040045-02 | B | 54x0.5ml tubes | 100°C | 1500rpm |
| MO00040045-03 | C | 35x1.5ml tubes | 100°C | 1500rpm |
| MO00040045-04 | D | 35x2.0ml tubes | 100°C | 1500rpm |
| MO00040045-05 | E | 15x0.5ml+20x1.5ml tubes | 100°C | 1500rpm |
| MO00040045-06 | F | 24xDiameter≤12mm tubes | 100°C | 1200rpm |
| MO00040045-07 | G | 12x15ml Falcon | 100°C | 750rpm |
| MO00040045-08 | H | 6x50ml Falcon | 100°C | 750rpm |
| MO00040045-09 | I | 103x67x30mm Bath Block | 100°C | 1500rpm |
| MO00040045-10 | J | 96x0.2ml Microplate | 100°C | 1500rpm |
| MO00040045-11 | K | 24x5ml tubes | 100°C | 1200rpm |
| MO0004004512 | L | 96-Deep well plate | 80°C | 800rpm |
| MO00040045-13 | M | 15x5ml Eppendorf tubes | 100°C | 1200rpm |
