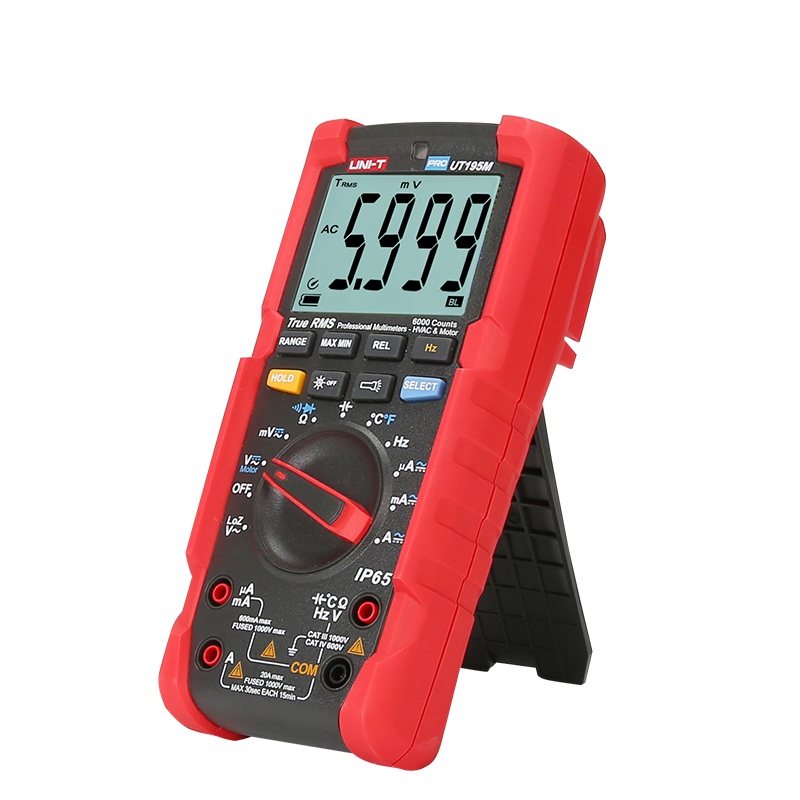

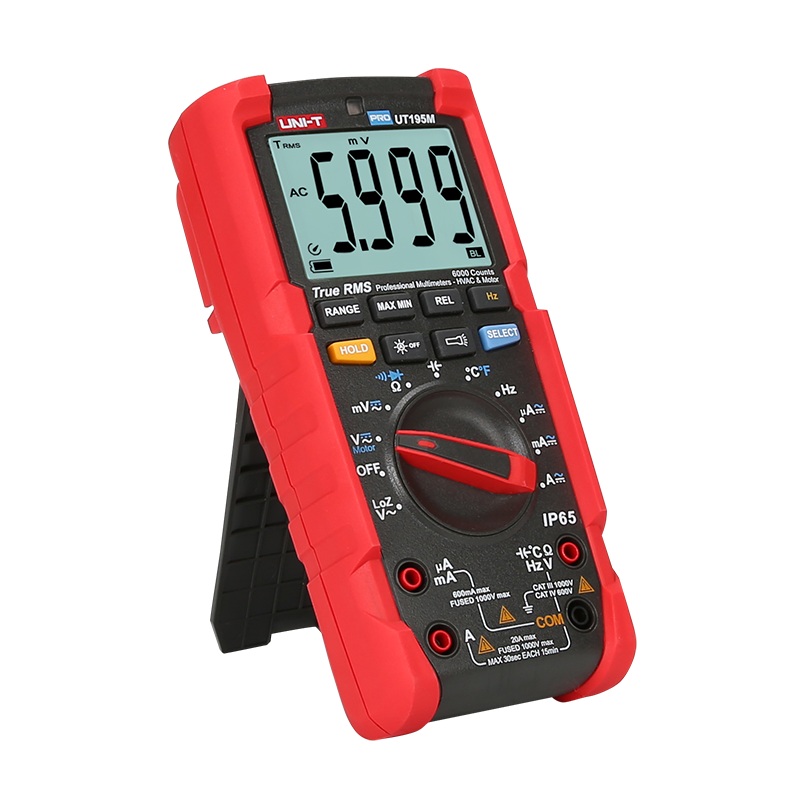

UT195M Professional Multimeter
UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. It can be applied in mines, oilfields and other harsh environments. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution and repair etc. It is exquisitely designed and easy to operate.
Features
1. IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
2. Large 6000-count LCD screen
3. True RMS
4. ACV 750V 5kHz bandwidth
5. Flashlight
6. Auto LCD backlight controlled by light sensor (can be turned off)
7. LoZ voltage test, for ghost voltage measurement
8. Motor phase sequence measurement with 2 probes
9. 20A current measurement (max 30 seconds)

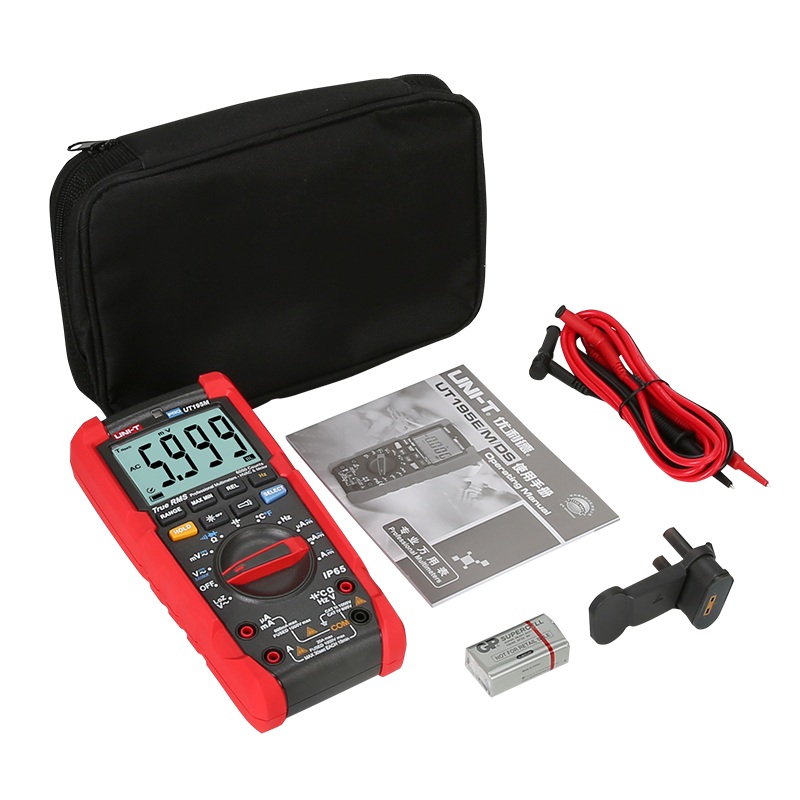

Accessories:
Test probes, battery, carrying bag, point type temperature probe
| Specifications | Range | Best Accuracy |
| Model | UT195M | |
| DC voltage | 600mV ~ 1000V | ±(0.5%+3) |
| AC voltage | 600mV ~ 750V | ±(0.7%+3) |
| LoZ ACV | 600.0V | ±(2.0%+3) |
| DC current (A) | 600.0μA ~ 20A | ±(0.8%+3) |
| AC current (A) | 600.0μA ~ 20A | ±(1.0%+3) |
| Resistance (Ω) | 600.0Ω ~ 60.00MΩ | ±(0.8%+2) |
| Capacitance | 6.000nF ~ 60.00mF | ±(3%+5) |
| Frequency | 60.00Hz ~ 40.00MHz | ±(0.1%+4) |
| Duty ratio | 0.1% ~ 99.9% | N/A |
| Temperature °C | -40 ~ 1000°C | ±(1.5%+4°C) |
| Temperature °F | -40 ~ 1832°F | ±(2.0%+5°F) |
| General Characteristics | ||
| Power supply | 9V 6F22 carbon-zinc or 6LR61 alkaline battery | |
| LCD size | 66mm × 51mm | |
| Device color | Red and grey | |
| Device weight | 450g | |
| Device size | 206.5mm×95.5mm×61mm | |
| Standard accessories | Test probes, battery, carrying bag, point type temperature probe | |
| Standard individual packing | Gift box, user manual, blister | |
| Standard quantity per carton | 10pcs | |
| Standard carton size | 605mm×335mm×405mm | |
| Standard carton gross weight | 11.8kg | |
