Professional Multimeter UT195DS, Dual Display Interface (HTN), 45 ~5kHz AC Voltage Frequency Response, 3V Diode/Continuity Test, Uni-T

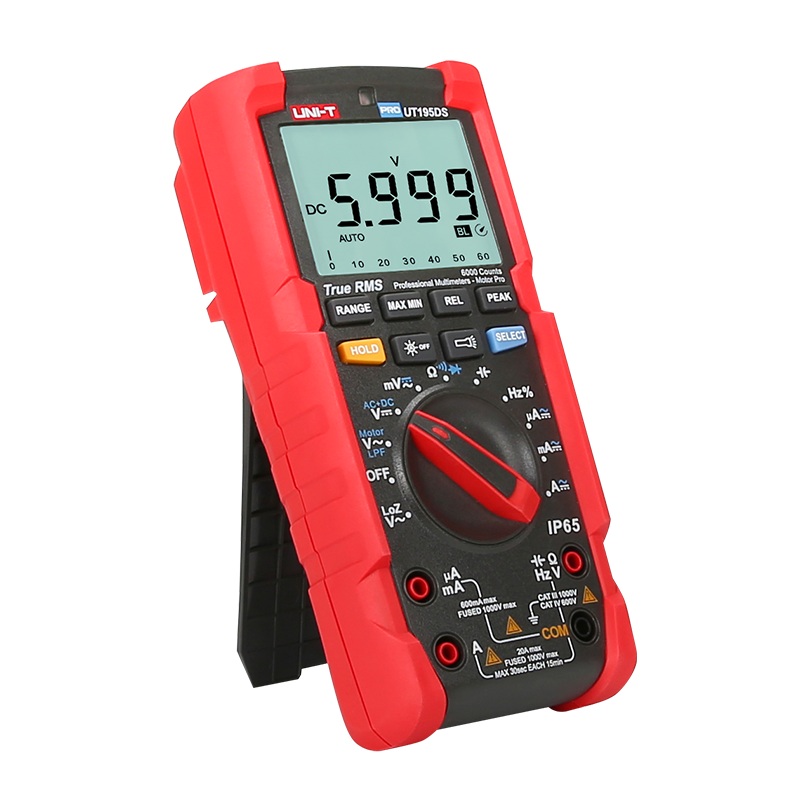

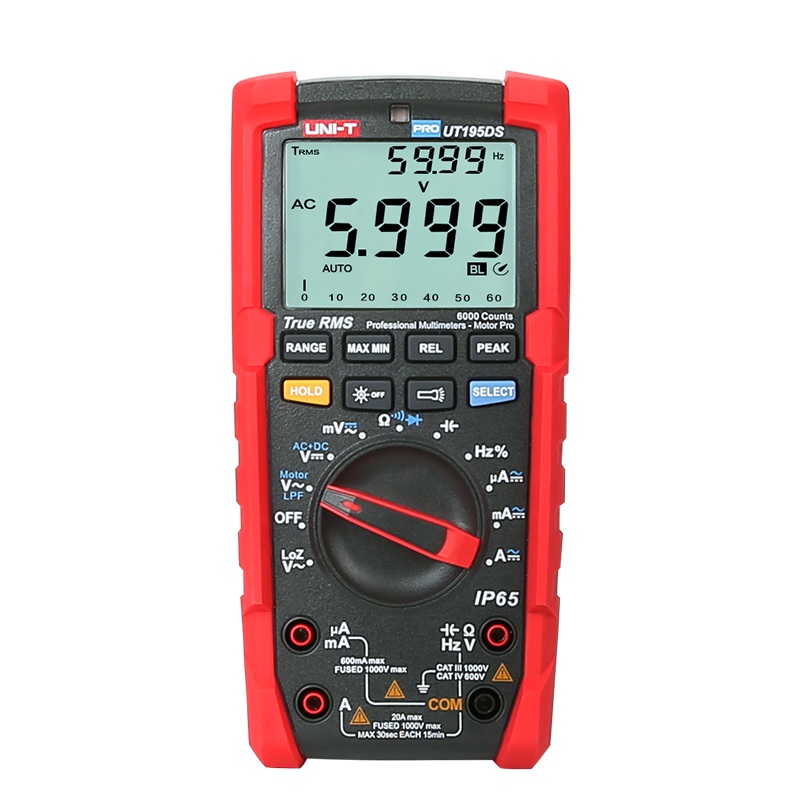

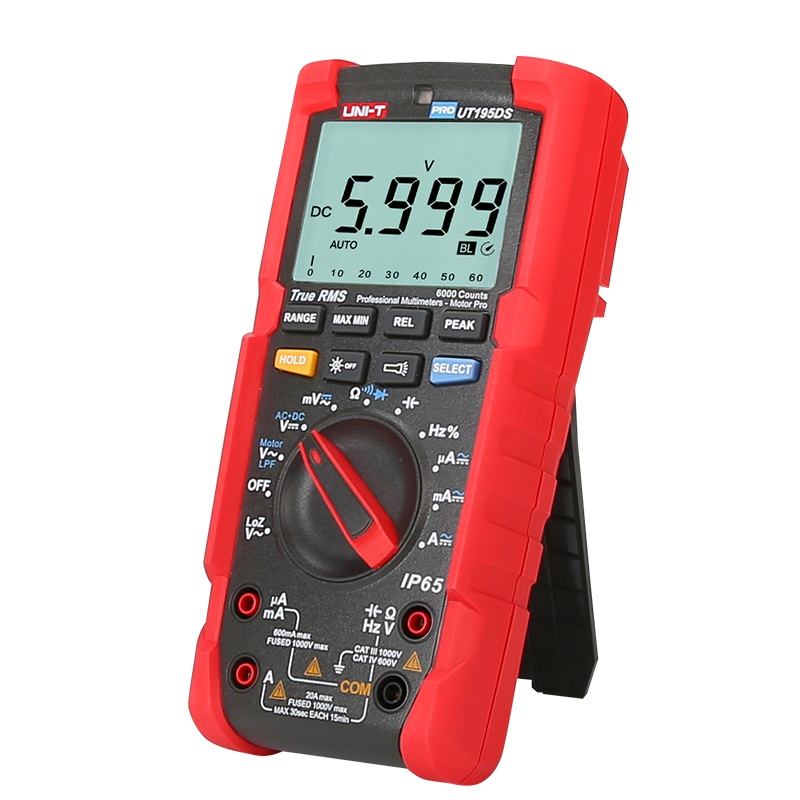

UT195DS Professional Multimeter

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. It can be applied in mines, oilfields and other harsh environments. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution and repair etc. It is exquisitely designed and easy to operate.

Features:

 1. IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V

 2. Large 6000-count LCD screen

 3. 5/s sampling rate

 4. True RMS

 5. ACV 750V 5kHz bandwidth

 6. (AC+DC) or (AV+FREQ) and more, dual mode

 7. Flashlight

 8. Auto LCD backlight controlled by light sensor (can be turned off)

 9. LoZ voltage test, for ghost voltage measurement

 10. Motor phase sequence measurement with 2 probes

 11. 20A current measurement (max 30 seconds)

 12. 31 analog bar

 13. Low pass filter, 1kHz 3dB attenuation

Accessories:

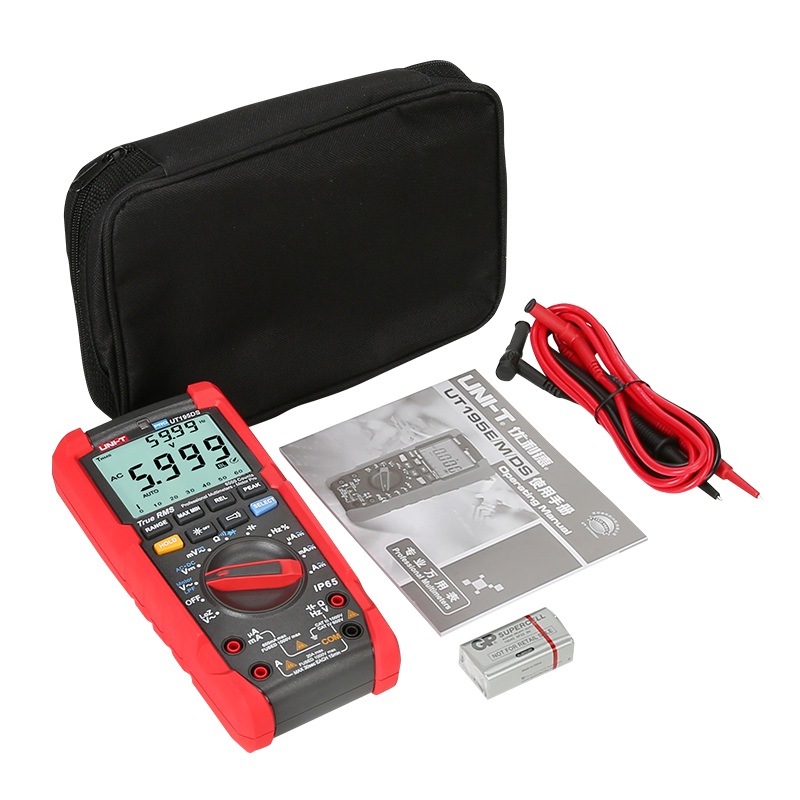

Test probes, battery, carrying bag

Specifications	Range	Best Accuracy
Model		UT195DS
DC voltage	600mV ~ 1000V	±(0.5%+3)
AC+DC	6.000V ~ 600V	±(1.5%+4)
AC voltage	600mV ~ 750V	±(0.7%+3)
LoZ ACV	600.0V	±(2.0%+3)
DC current (A)	600.0μA ~ 20A	±(0.8%+3)
AC current (A)	600.0μA ~ 20A	±(1.0%+3)
Resistance (Ω)	600.0Ω ~ 60.00MΩ	±(0.8%+2)
Capacitance	6.000nF ~ 60.00mF	±(3%+5)
Frequency	60.00Hz ~ 40.00MHz	±(0.1%+4)
Duty ratio	0.1% ~ 99.9%	±(2.0%+5)
Peaks hold	250μs
General Characteristics
Power supply	9V 6F22 carbon-zinc or 6LR61 alkaline battery
LCD size	66mm×51mm
Device color	red and grey
Device weight	450g
Device size	206.5mm×95.5mm×61mm
Standard accessories	Test probes, battery, carrying bag
Standard individual packing	Gift box, user manual, blister
Standard quantity per carton	10pcs
Standard carton size	605mm×335mm×405mm
Standard carton gross weight	11.8kg
