Portable Multi-function Extractor, Power 200W, Voltage 180-240V, CH606

RM178,750.00
+ -
Wishlist
Compare

0 reviews / Write a review

Description PDF

Ask Question About Product

Note: HTML is not translated!
Submit

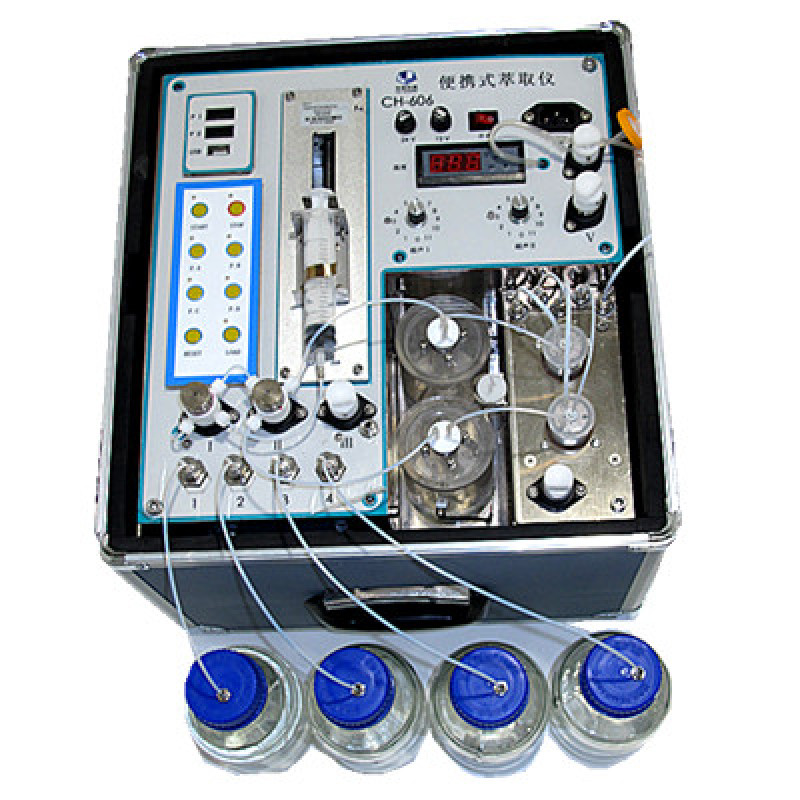

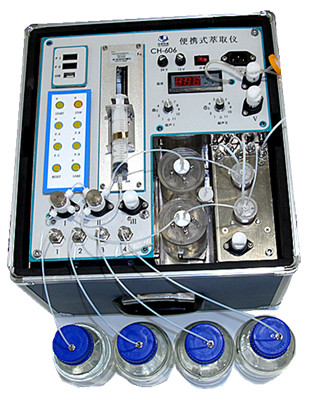

Portable multi-function extractor is a kind of extraction device widely used in chemical laboratory with two sample channels, which is operated in turn. It is a small, lightweight and portable for our company based on the 601A series. The extraction product is convenient for on-site inspection by the inspectors. It can perform automatic liquid-liquid extraction, solid-phase extraction and solid-liquid extraction. The project includes: loading solvent, ultrasonic, atomized extraction, collection, concentration and so on. The experiment process is completed with one click and can be run automatically without being guarded. Simple and practical, convenient and quick, and one-time test pipeline, which guarantees zero pollution and no residue in the experimental process.



Performance and characteristics



Liquid-liquid extraction

The patented atomizer emulsification technology with ultrasonic function greatly improves the extraction efficiency and sets the number of extractions independently.

Solid Phase Extraction

The solid phase extraction device is matched with commercially available versatile, 1m ,3ml , 6ml , 8ml , 10ml SPE columns for easy use.

Solid-liquid extraction

The extracted sample is subjected to ultrasonication, heated extraction, and the ultrasonic vibration intensity is adjusted to improve the extraction efficiency.

One button operation,

 fast and convenient

Set the appropriate extraction procedure and one-click to achieve the extraction process.

Fine extraction to overcome emulsification problems

The exclusive atomizer extraction technology, combined with ultrasonic technology, maximizes the contact surface area of ​​the two solutions, and the recovery rate is significantly improved, while effectively controlling the emulsification problem.

Good parallelism and high stability

Through the process control of the instrument, the human error is reduced and the instrument error is also minimized.

No residue in the pipeline, avoid cross-contamination

The experimental pipeline is simple and easy to replace, and all sample contact pipes can be replaced, effectively avoiding cross-contamination.

Automate experiments without manual staffing

One-click program control executes the experimental program.

Various drying methods are available

The drying method can be equipped with the required gas tank according to actual needs.

Fast and efficient after sales service

Fast, decisive, accurate, thoughtful, thorough and dedicated to customer service



Application field



The products involve sample preparation work in various fields such as environmental analysis, agricultural product safety, food safety, pharmaceutical, explosives analysis, etc. Extraction and concentration of fixed volume samples can be directly applied to gas chromatography, liquid chromatography, high performance capillary electrophoresis, color chromatography-mass spectrometry Instruments and other analytical instruments are analysed.
