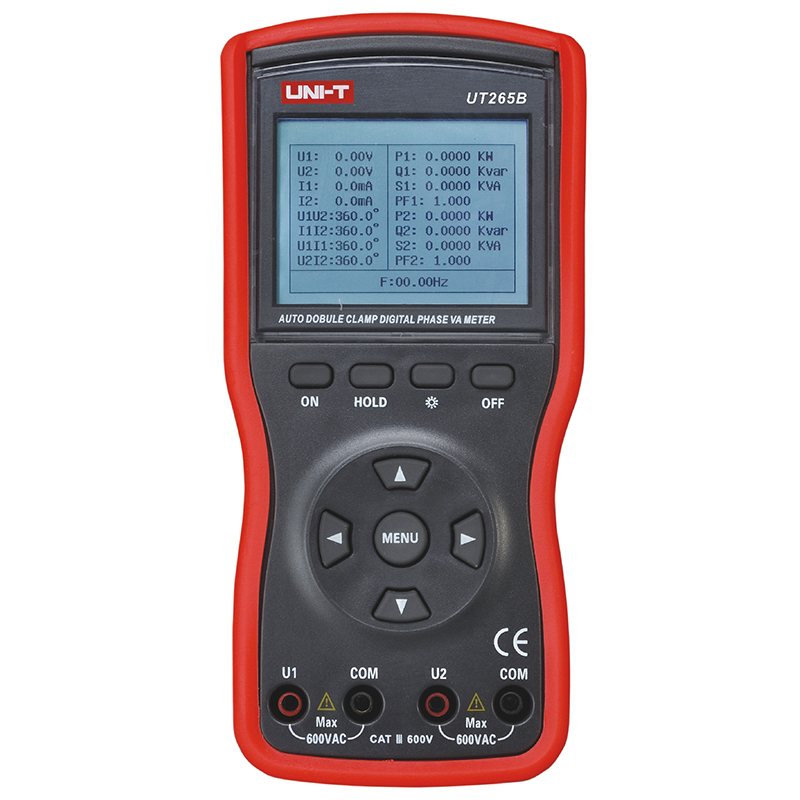

UT265B Intelligent 2/3 Phase Clamp Voltammeter
UNI-T’s UT265B is an auto range intelligent 2-clamp phase voltammeter with RS-232 interface. It tests AC current/voltage, active/reactive power, phase angle.
Features
1. Measures voltage, current, power, frequency, relationships between U-U, U-I, I-I all at the same time
2. Auto range, 2/s sampling rate
3. Data hold
4. Stores 1500 sets of measurement data
5. RS-232 interface
6. Low power consumption (40mA), low battery indication
7. Auto power off; LCD backlight
8. Anti-vibration, anti-skidding, high-insulation case
9. LCD: 240×160 pixel display
10. Comes with 0.5A current clamp
Accessories
Batteries, Current Clamp: 2pcs, Test Line: 4pcs (2 yellow, 2 black)
|
Specifications |
Range |
Accuracy |
|
|
Type |
UT265B |
||
|
AC Current (A) |
0.0mA～20.0A |
±(1.5%+3) |
|
|
AC Voltage (V) |
0.00V～600V |
±(1.5%+3) |
|
|
Frequency (Hz) |
45Hz～65Hz |
±(2%+3) |
|
|
Active Power (W) |
0.0W～12kW |
±(3%+3) |
|
|
Apparent Power (VA) |
0.0VA～12kVA |
±(3%+3) |
|
|
Reactive Power (VAr) |
0.0VAR～12kVAR |
±(3%+3) |
|
|
Power Factor |
-1～+1 |
±0.03 |
|
|
Phase Angle (°) |
0.0°～360° |
±1° |
|
|
Features |
|||
|
Display Mode |
LCD：240 dots×160 dots |
√ |
|
|
Clamp Size |
Acuminate Current Clamp：7.5mm×13mm (Optional), Round Jaw Current Clamp：35mm×40mm (Optional) |
√ |
|
|
Auto Range |
|
√ |
|
|
RS-232 |
|
√ |
|
|
Data Storage |
|
1500 |
|
|
LCD Backlight |
|
√ |
|
|
Data Hold |
|
√ |
|
|
Input Impedance for DCV |
≥2MΩ |
√ |
|
|
Auto Power Off |
About 15 Minutes |
√ |
|
|
Low Battery Indication |
|
√ |
|
|
Sampling Rate |
About 0.5 times/second |
√ |
|
|
General Characteristics |
|||
|
Power |
1.5V Alkaline dry battery (LR6) X 6 |
||
|
Product Color |
Red and grey |
||
|
Product Weight |
550g |
||
|
Product Size |
196mm X 92mm X 54mm |
||
|
Standard Accessories |
Batteries, Current Clamps: 2pcs, Test Line: 4pcs (2 yellow, 2 black) |
||
|
Standard Individual Packing |
Gift Box, User Manual |
||
|
Standard Quantity Per Carton |
6pcs |
||
|
Standard Carton Measurement |
530mm X 380mm X 395mm |
||
|
Standard Carton Gross Weight |
17kg |
||
