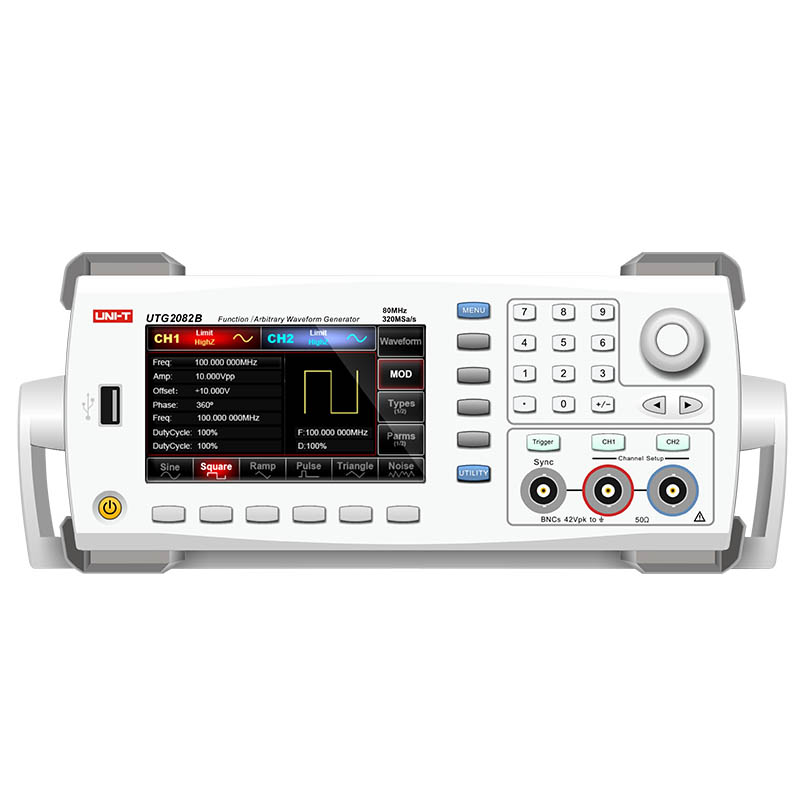

UTG2082B Function/Arbitrary Waveform Generator
UTG2082B can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.
Main features
1. Dual channels of equivalent performance, independent output
2. 320MSa/s sampling rate; 16 bits vertical resolution
3. 80MHz sine waveform output, 1μHz full-band resolution
4. 25MHz pulse waveform, adjustable rise/fall time
5. Max arbitrary waveform length of 8k/1M points; 161/48 nonvolatile waveforms storage
6. Modulations available: AM, FM, PM, ASK, FSK, PWM, PSK
7. 4.3-inch high resolution TFT LCD Display
8. USB Host, USB Device, LAN, 10MHz clock source input/output
Accessories
Standard power cord, USB cable, 1m BNC cable (×2), English manual, PC software CD
| Model | MO00640311 |
| Basic characteristics | |
| Channels | 2 channels (A/B) of equivalent performance |
| Waveform features | 7 standard waveforms; more than 160 built-in arbitrary waveforms |
| Output waveform | Sine, square, ramp, harmonic, pulse, noise, DC, arbitrary; many modulations, AM, FM, PM, ASK, FSK, PSK, PWM |
| LCD | 4.3 inches TFT LCD, WVGA (480×277) |
| Frequency characteristics | |
| Sine | 1μHz ~ 80MHz |
| Square | 1μHz ~ 70MHz |
| Pulse | 1μHz ~ 25MHz |
| Sawtooth | 1μHz ~ 4MHz |
| Harmonic | 1μHz ~ 40MHz |
| White noise | 80MHz bandwidth (-3dB) (typical) |
| Resolution | 1μHz |
| Accuracy | Within 90 days ±50ppm |
| Within 1 year ±100ppm | |
| 18°C ~ 28°C | |
| Temperature coefficient | <2ppm/°C |
| Sine wave spectrum purity | |
| Harmonic distortion | Typical (0dBm) |
| DC ~ 1MHz: -60dBc | |
| 1MHz ~ 10MHz: -55dBc | |
| 10MHz ~ 80MHz: -50dBc | |
| 80MHz ~ 120MHz: -40dBc | |
| Total harmonic distortion | <0.2% (DC ~ 20kHz, 1Vpp) |
| Spurious signal (non harmonic) | Typical (0dBm) |
| ≤10MHz < -70dBc | |
| ＞ 10MHz <-70dBc+6dB/octave | |
| Phase noise | 10MHz: ≤-125dBc/Hz (typical, 0dBm, 10kHz offset) |
| Output characteristics | |
| Amplitude (50Ω load) | ≤20MHz: 1mVpp ~ 10Vpp |
| ≤60MHz: 1mVpp ~ 5Vpp | |
| ≤120MHz: 1mVpp ~ 2Vpp | |
| Accuracy | Typical (1kHz sine wave, 0V offset, ＞10mVpp) ±(1% of set value+1mVpp) |
| Flatness | Typical (sine wave, 2.5Vpp) ≤10MHz: ±0.1dB ≤60MHz: ±0.2dB ≤80MHz: ±0.4dB ≤120MHz: ±0.8dB |
| Physical specifications | |
| Size | Width 265mm |
| Height 110mm | |
| Depth 320mm | |
| Weight | 3.2kg (excluding package) |
