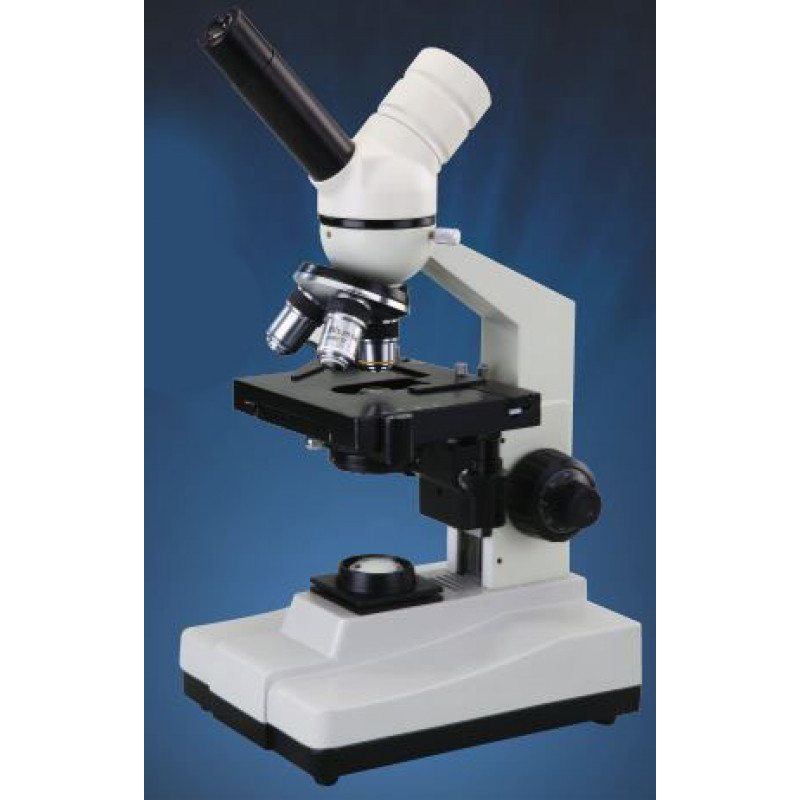

Digital Microscope XSP-104DN, Internal Active 2.0 Mega, Total Magnification: 100x ~ 1000x, Eyepiece: WF10x, Monocular 45°, Lissview

  • Brand:Lissview
  • Model:MO00200041
  • Availability:In Stock
RM12,806.00
+ -
Wishlist
Compare

0 reviews / Write a review

Description PDF

Ask Question About Product

Note: HTML is not translated!
Submit

CCD: Internal  Active 2.0 Mega,

Total  Magnification:  100x ~ 1000x

Eyepiece:  WF10x

Objectives: 10x  40xs  100xs

Eyepieces Tube : Monocular  45°

                           Lnclined Tube Rotatable 360°

Lighting  System:  0.5 W LED Electrical Illumination Adjustment

Coarse Adjustment Range: Coaxial Coarse and Fine  20mm

Work Stage:  Layer Mechanical Stage 120mmx120mm

Condenser: NA1.25  condenser,  pulling  plate  light  bar CCD

Adaptor ring: USB 2.0

Sensor : CMOS 2.0M Pixels

Most Resolution: 1600x1200

Frame Rate: CIF30 f/s VGA15 f/s

Image format: RGB 24

Color: Max1.64 million 24 Bit Color  Video

Model: 1600x1200

Sensitivity: 1.0 V/lux-sec@550nm

Spectrum response: 400nm ~1000nm

Max range: ＜72db

White Balance: Auto/Manual

Electrical Source: PC USB 2.0 Port
