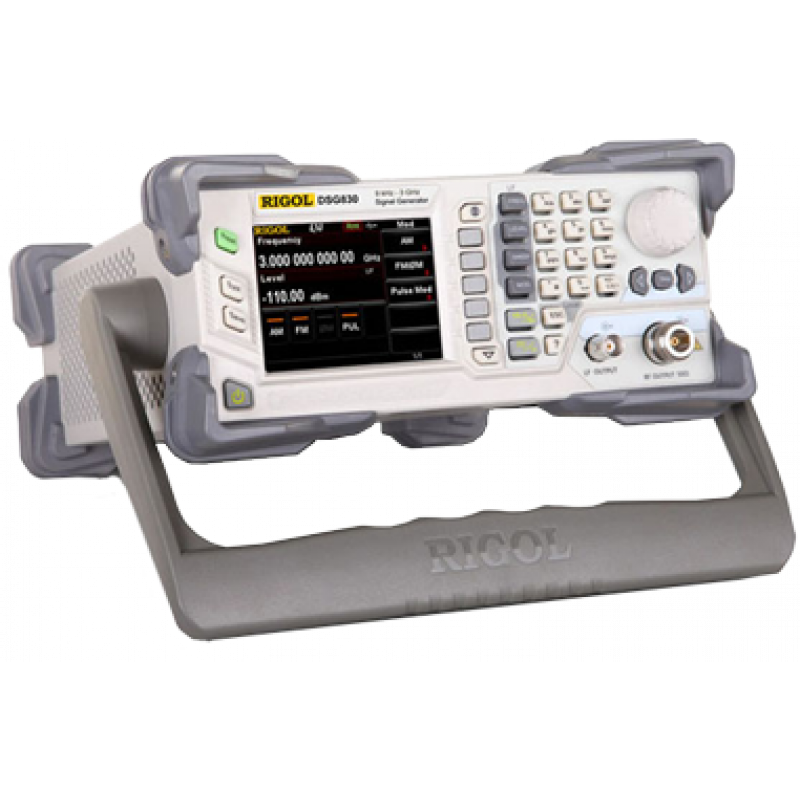

The DSG800 series covers output frequencies from 9 kHz to 3 GHz. The instruments provide maximum output power up to +20 dBm and low SSB phase noise -115 dBc/Hz, amplitude accuracy of +/- 0.5 dB, and frequency resolution of 0.01 Hz at any frequency. An oven-controlled crystal oscillator time-base option provides < 5 ppb temperature stability and < 30 ppb/year aging stability, the most accurate and stable timebase available in this class. For IoT and RF applications from design to debug the DSG800 series provides uncompromised RF signal generation capabilities at an unprecedented value.
Product Feature | Customer Benefit | |
---|---|---|
High Power Output up to +20 dBm | Simplifies high power setups. No external amplifier needed. | |
最高+20dBmの高出力 | 高出力のセットアップを簡素化します。外部アンプは必要ありません。 | |
Advanced Modulations | Engineers can generate more complex signals without additional hardware using the modulation schemes in the DSG800. | |
High Accuracy timebase option | Your source is only as good as your reference. Stable and accurate clock provides basis for high performance RF output. |
