DC Power Supply

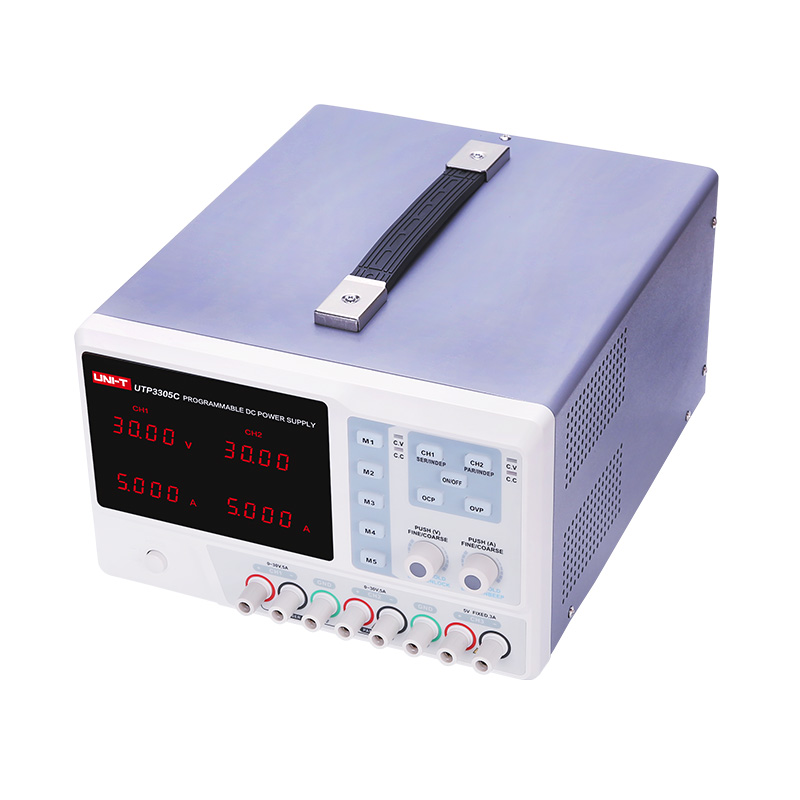

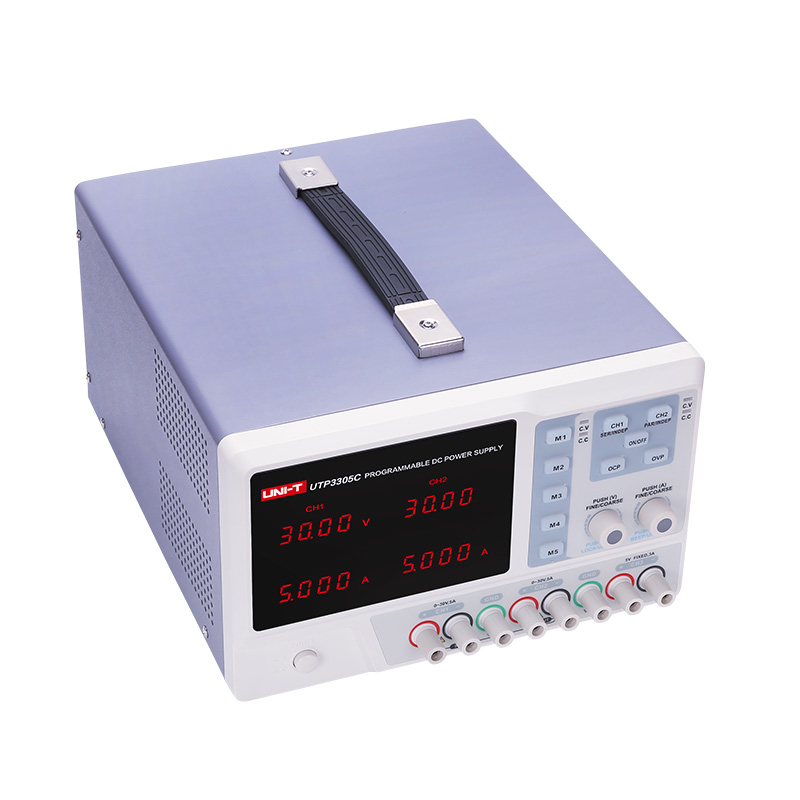

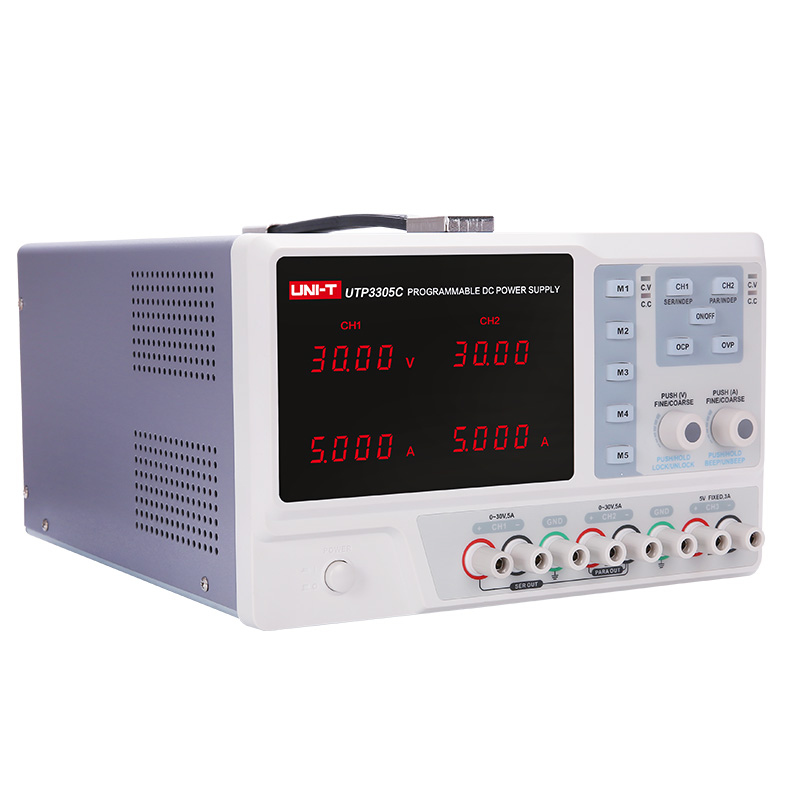

UTP3300C series are high performance programmable linear DC power supplies with single channel output and process control. They can meet diversified measurement needs with pure signal output, competitive specifications and a variety of interfaces.
Features
1. High precision 4-bit voltage and current display
2. Over votlage and current protection
3. Over temperature protection
4. One key storage recall of 5-group data; Optional LAN interface
5. Power-off memory; Software calibration; Keyboard lock
Accessories
USB and RS-232 interface cables, power cord
| Specifications | MO00640302 | |
| Rated output voltage | 0~30V (CH1/CH2) | |
| Rated output current | 0~5A (CH1/CH2) | |
| Output power | 315W | |
| Load effect | Voltage | <0.01%+5mV |
| Current | <0.1%+10mA | |
| Power effect | Voltage | <0.01%+3mV |
| Current | <0.1%+3mA | |
| Resolution setting | Voltage | 10mV |
| Current | 1mA | |
| Accuracy setting (25℃±5℃) | Voltage | <0.5%+20mV |
| Current | <0.5%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤2mVrms |
| Current | ≤3mArms | |
| Output temperature coefficient | Voltage | ≤150ppm |
| Current | ≤150ppm | |
| Recall resolution | Voltage | 10mV |
| Current | 1mA | |
| Voltage rise delay | ≤100ms (10% rated load) | |
| Parallel load effect | ≤0.1%+0.1V | |
| Serial load effect | ≤0.1%+0.1V | |
| CH3 output features | Voltage | 5V |
| Current | 3A | |
| Voltage accuracy | ±50mV | |
| Load effect | ±50mV | |
| Interfaces | USB Device, RS-232 | |
| General characteristics | ||
| Display | 4 windows, LED | |
| Power | AC 100V/120V/220V/230V±10% | |
| Product size (W×H×D) | 260mm×176mm×317mm | |
| Product net weight | 7.5kg | |
| Standard accessories | USB and RS-232 interface cables, power cord | |
| Standard individual packing | Gift box | |
| Standard quantity per carton | 1pcs | |
| Standard carton measurement | 430mm×400mm×255mm | |
| Standard carton gross weight | 9kg | |
